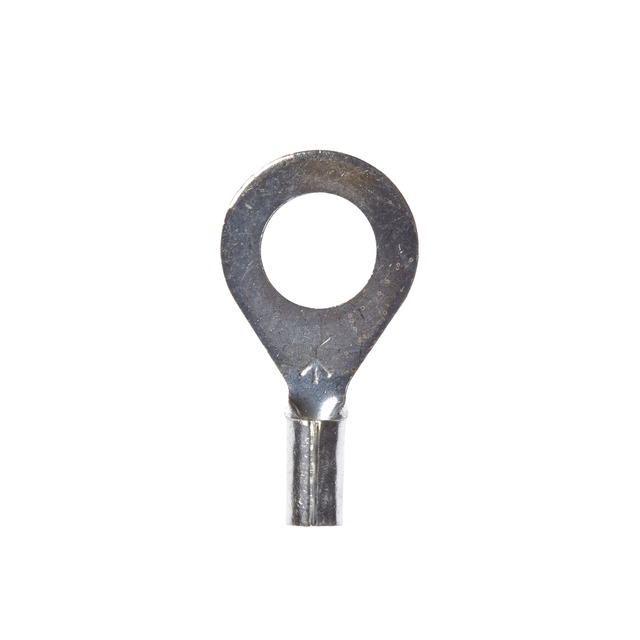

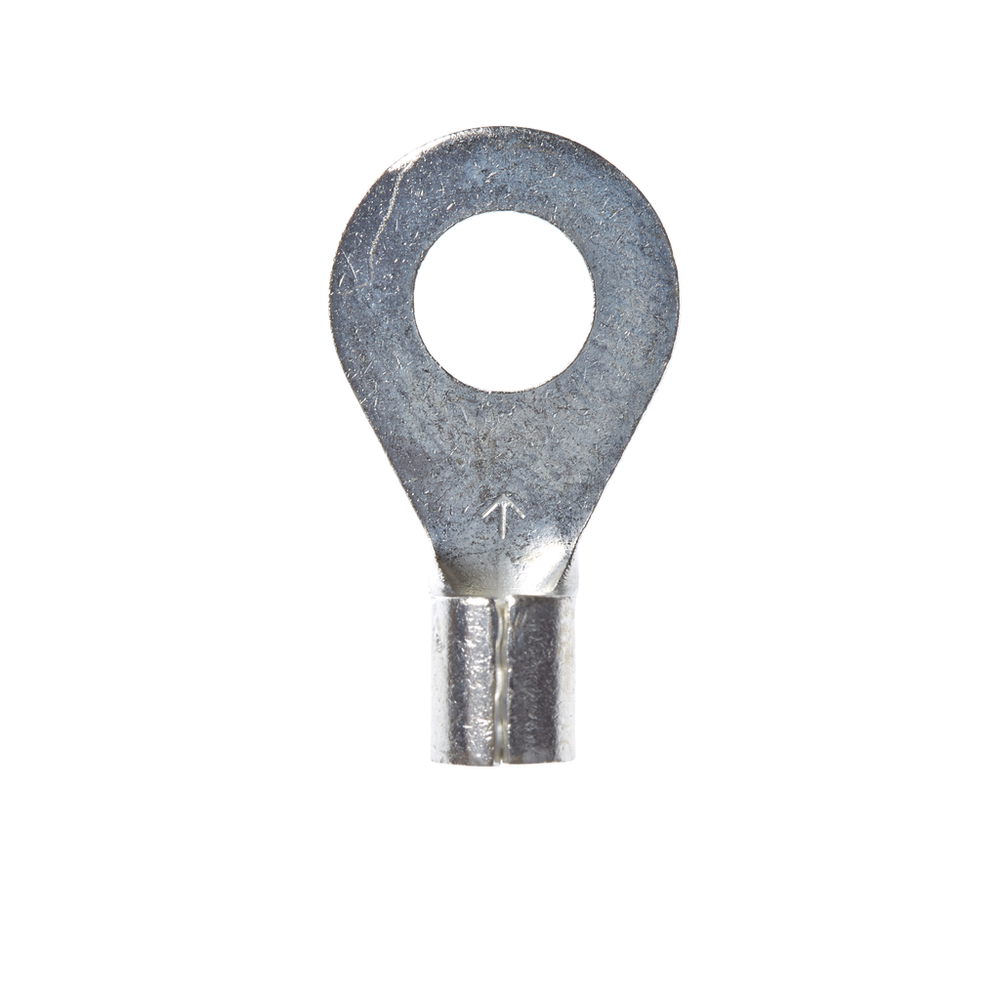

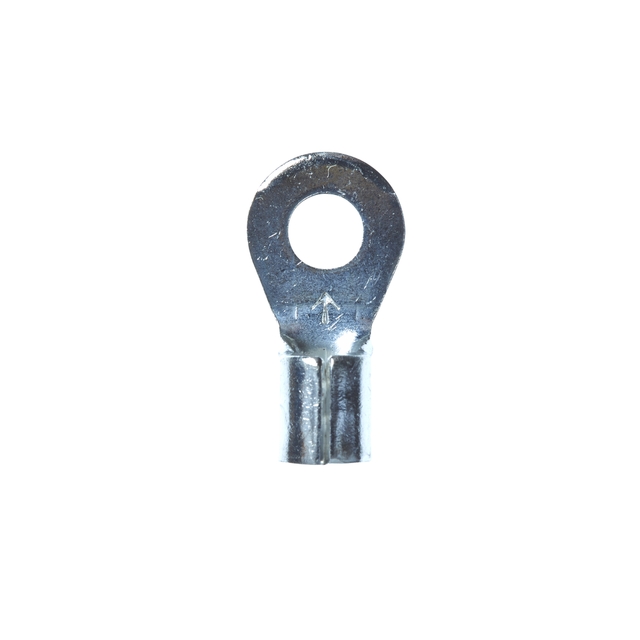

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU10-14R/SK, Stud Size 1/4, 500/Case - 7100164077

Sold As: 500-Pack
SKU: 7100164077
MPN: 7100164077
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018827
3M ID: 80610048169
5 Digit UPC: 1882
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial)0.25
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Barrel Length (Imperial)0.25 Inch
Insulation MaterialNon-insulated
Connection Width (Metric)6.35
Terminal StyleStandard
Barrel StyleButted
Overall Width (Imperial)0.53
Overall Length (Imperial)0.96
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Terminal TypeRing
Ring TypeStandard
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
