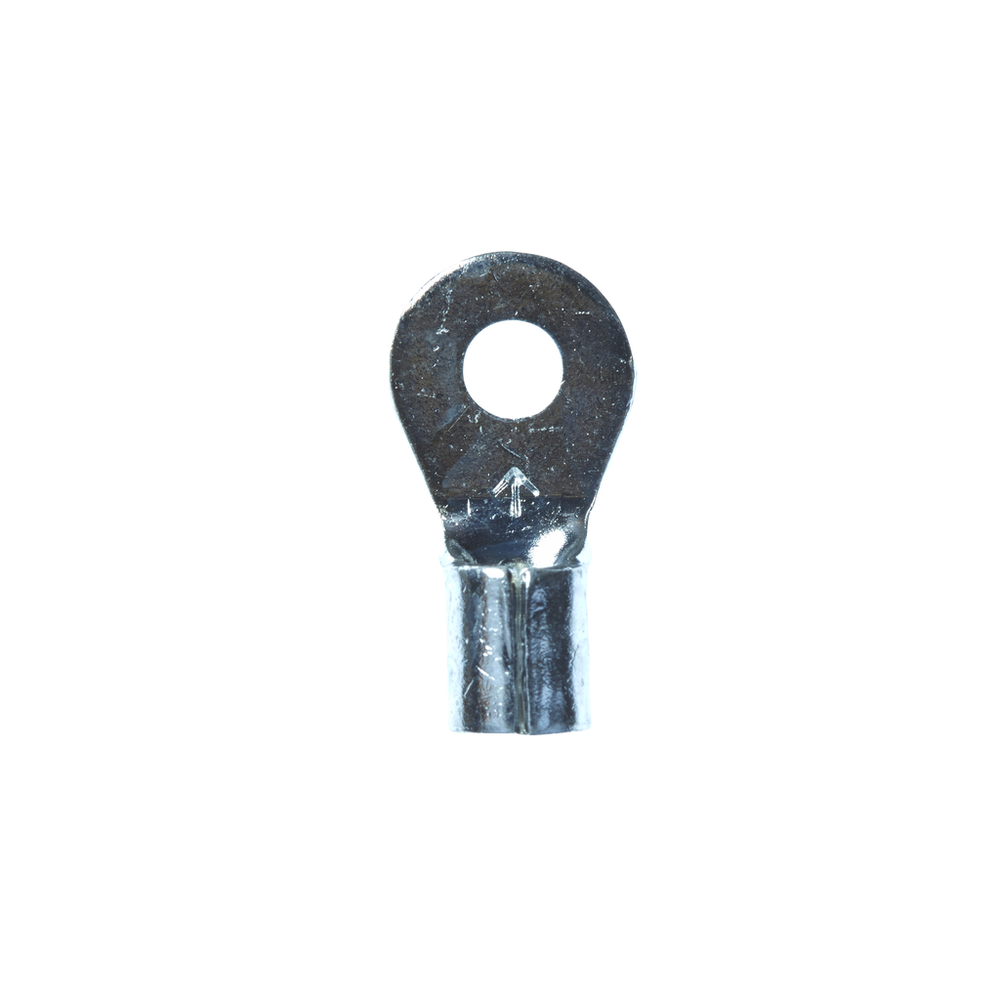

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU10-6RK, Stud Size 6, 500/Case - 7100164075

Sold As: 500-Pack
SKU: 7100164075
MPN: 7100164075
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018780
3M ID: 80610048128
5 Digit UPC: 1878
$134.86 ($0.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Beveled mouth offers easy insertion of wires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial) UOMin
Terminal TypeRing
Barrel StyleButted
Connection Width (Imperial)0.138
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleStandard
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric)3.5
Maximum Conductor Size (Metric)5.26
Ring TypeStandard
Connection Width (Metric) UOMmm
Solution forWireless Network: Infrastructure Accessories
UL File NumberE23438
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.38
Overall Length (Imperial)0.73
