3M Products & Supplies

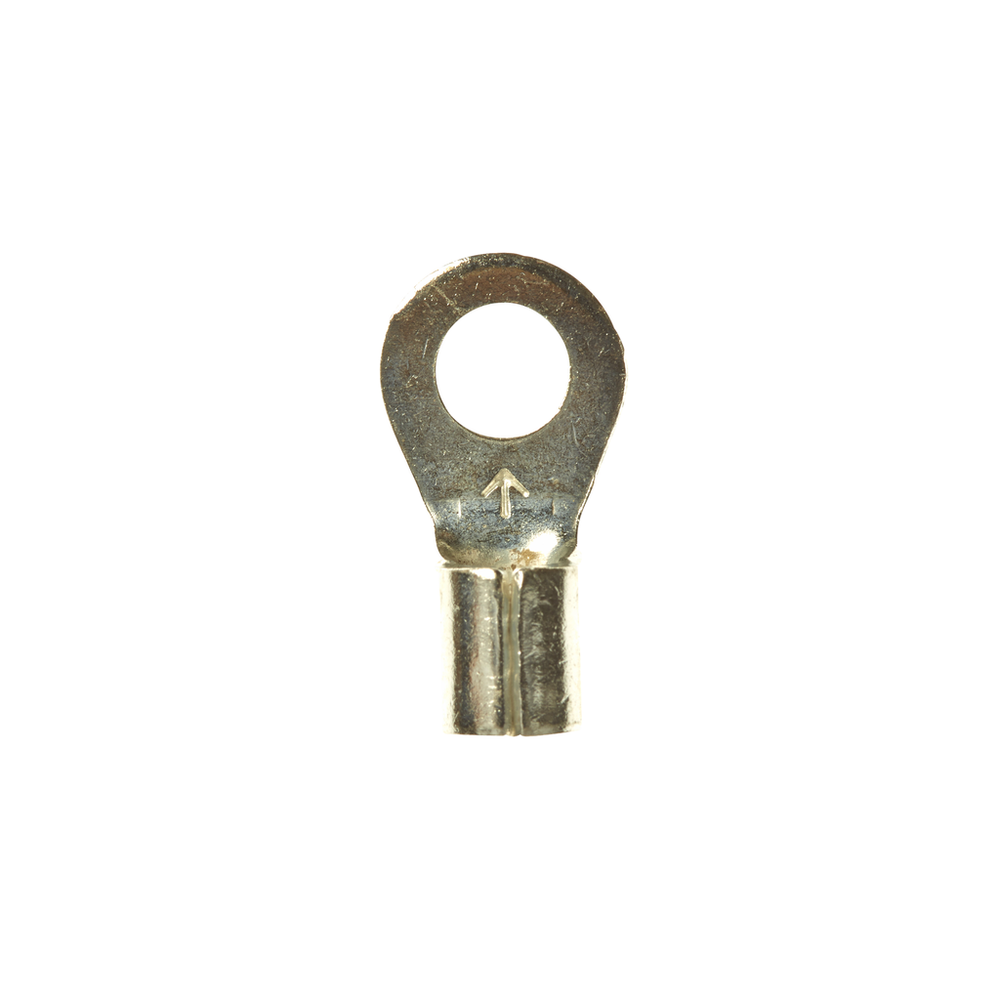

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU10-10RK, Stud Size 10, 500/Case - 7000132260

Sold As: 500-Pack
SKU: 7000132260
MPN: 7000132260
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018810
3M ID: 80610048151
5 Digit UPC: 1881
$122.85 ($0.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)12 AWG
Connection Width (Imperial)0.19
UL File NumberE23438
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial)0.38
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Connection Width (Metric)4.826
Overall Width (Imperial) UOMin
Terminal TypeRing
Barrel StyleButted
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial) UOMin
Terminal StyleStandard
Overall Length (Imperial)0.73
Ring TypeStandard
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius) UOMDegree
