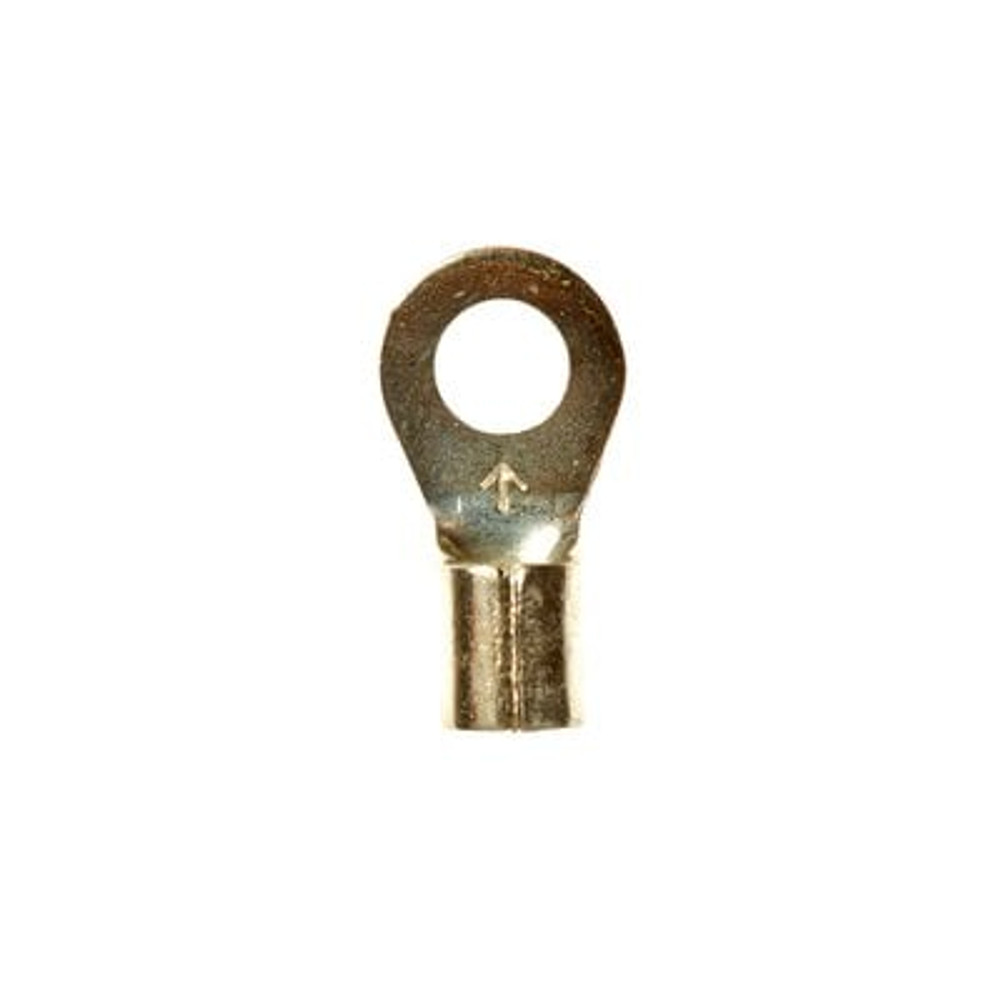

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-10RK, Stud Size 10, 500/Case - 7100164081

Sold As: 500-Pack
SKU: 7100164081
MPN: 7100164081
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007140023
3M ID: 80610048292
5 Digit UPC: 14002
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Terminal TypeRing
Dimension E0.54 Inch
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)175.0
Minimum Stud Diameter (Imperial) UOMin
Connection TypeCrimp
Stud Size#10
Minimum Stud Diameter (Metric)5.0
Insulation MaterialNon-insulated
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.38
Overall Length (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Barrel Length (Imperial)0.25 Inch
Ring TypeStandard
Packaging500 per bulk box
Overall Width (Imperial) UOMin
Overall Length (Imperial)0.73
Minimum Stud Diameter (Metric) UOMmm
UL File NumberE23438
Barrel StyleBrazed
Units per Case500.0
Maximum Conductor Size (Metric)5.26
Clearance (C)0.29 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleStandard
