3M Products & Supplies

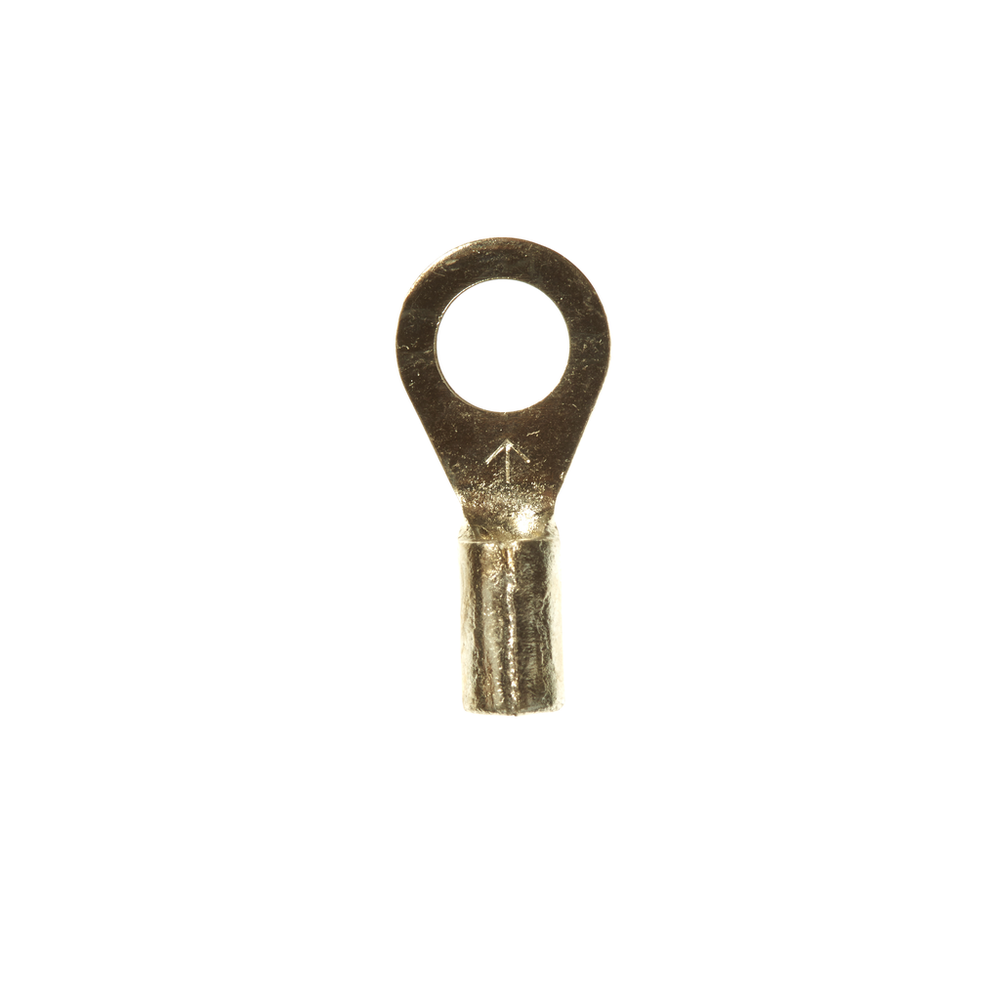

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M14-10RK, Stud Size 10, 1000/Case - 7100163992

Sold As: 1000-Pack
SKU: 7100163992
MPN: 7100163992
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007139294
3M ID: 80610040315
5 Digit UPC: 13929
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Connection Width (Imperial) UOMin
UL File NumberE23438
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNon-insulated
Ring TypeStandard
Barrel StyleBrazed
Overall Width (Imperial)0.33
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)4.826
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08
Terminal TypeRing
Terminal StyleStandard
Connection TypeCrimp
Connection Width (Imperial)0.19
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.7
Minimum Conductor Size (Imperial)16 AWG
