3M Products & Supplies

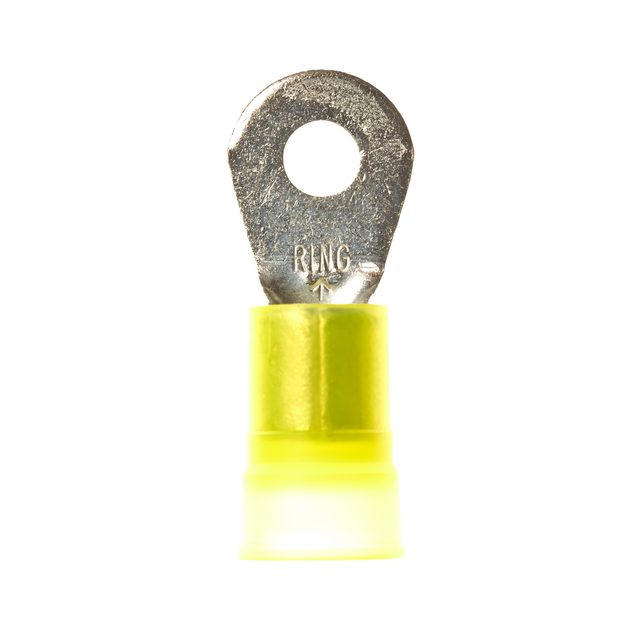

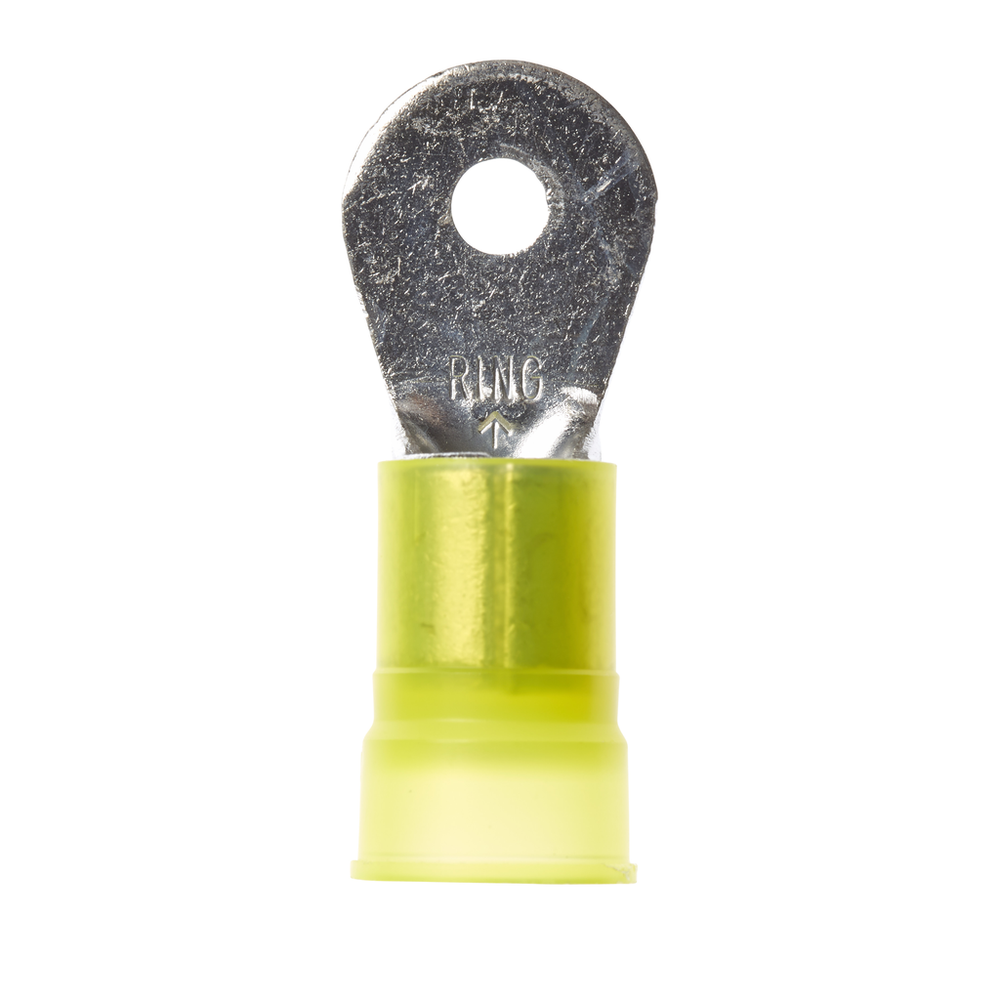

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN4-10RK, Stud Size 10, 200/Case - 7100163452

Sold As: 200-Pack
SKU: 7100163452
MPN: 7100163452
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082774
3M ID: 80008006134
5 Digit UPC: 8277
$319.14 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.68
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Recommended Voltage Rating600.0
Maximum Recommended Voltage Rating UOMV
Maximum Conductor Size (Metric)21.2
Connection TypeCrimp
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Minimum Conductor Size (Metric)21.2 mm²
Minimum Conductor Size (Imperial)4 AWG
Overall Length (Imperial) UOMin
Insulation MaterialNylon
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleBrazed Seam
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Maximum Voltage Rating600 to 1000 V
Ring TypeStandard
Connection Width (Metric)4.826
Overall Length (Imperial)1.74
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection Width (Metric) UOMmm
Terminal TypeRing
Maximum Conductor Size (Imperial)4 AWG
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Connection Width (Imperial)0.19
UL File NumberE23438
Barrel Length (Imperial)0.39 Inch
