3M Products & Supplies

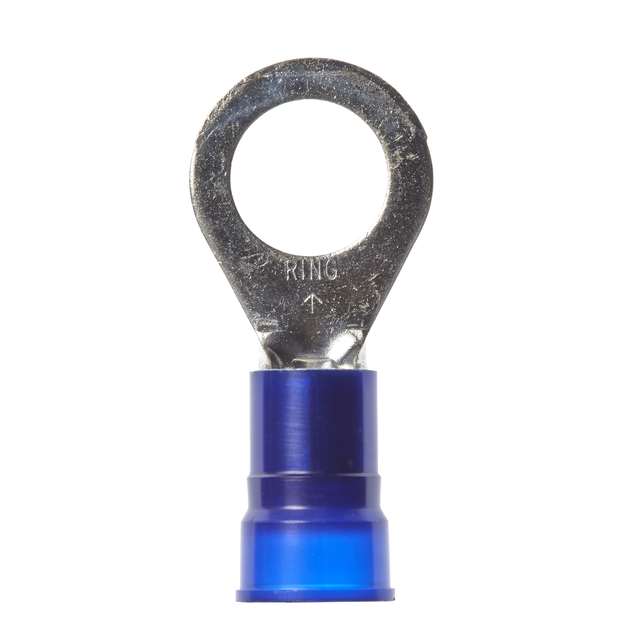

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN4-12R/SK, Stud Size 1/2, 200/Case - 7100163456

Sold As: 200-Pack
SKU: 7100163456
MPN: 7100163456
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082811
3M ID: 80008006175
5 Digit UPC: 8281
$391.08 ($1.96 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Flared portion of the nylon sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Connection TypeCrimp
Terminal TypeRing
UL File NumberE23438
Maximum Conductor Size (Imperial)4 AWG
Maximum Recommended Voltage Rating UOMV
Barrel Length (Imperial)0.39 Inch
Connection Width (Imperial)0.5
Operating Temperature Range (Celsius)-40 °C to 105 °C
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Maximum Conductor Size (Metric)21.2
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)21.2 mm²
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Imperial)4 AWG
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial)0.74
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialNylon
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel StyleBrazed Seam
Overall Width (Imperial)0.68
Connection Width (Imperial) UOMin
Connection Width (Metric)12.7
Maximum Recommended Voltage Rating600.0
Ring TypeStandard
Maximum Voltage Rating600 to 1000 V
