3M Products & Supplies

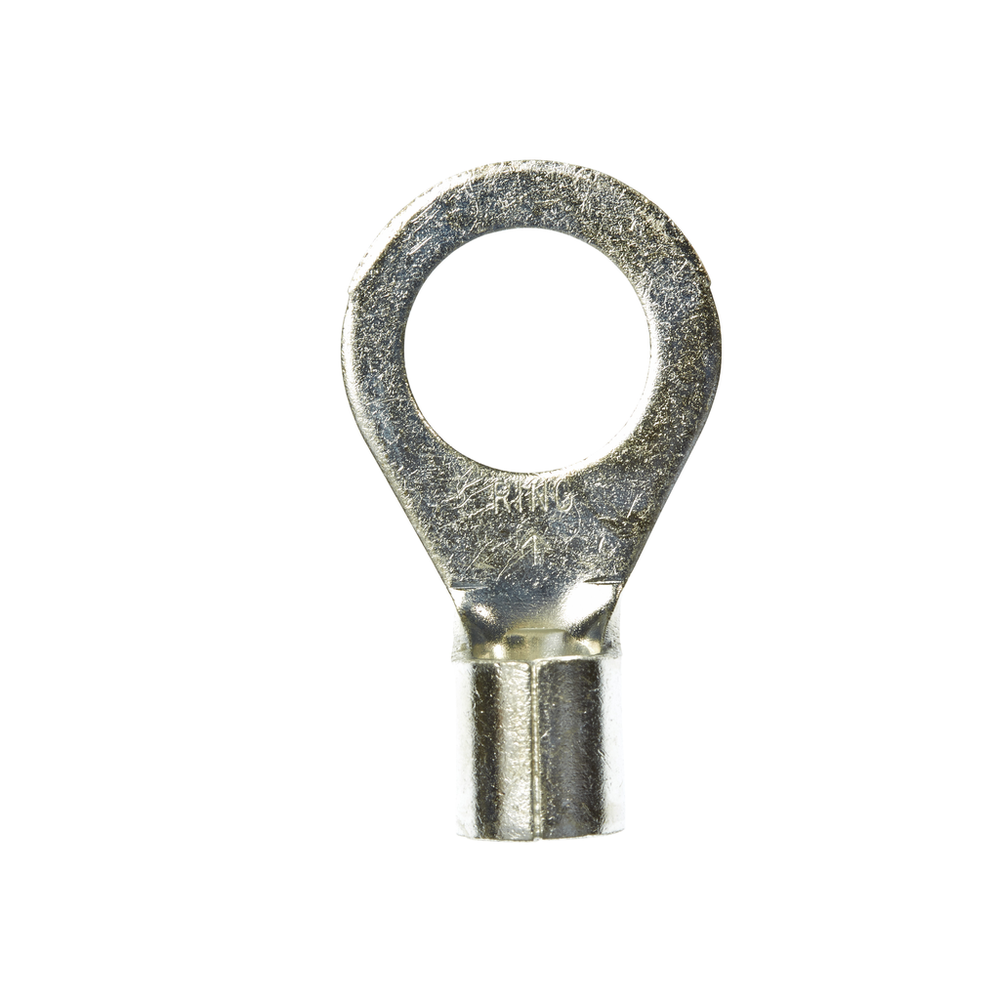

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M6-12R/SK, Stud Size 1/2, 200/Case - 7100164157

Sold As: 200-Pack
SKU: 7100164157
MPN: 7100164157
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021551
3M ID: 80610051619
5 Digit UPC: 2155
$247.23 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.5
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.81
Ring TypeStandard
Terminal StyleStandard
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)6 AWG
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)6 AWG
Overall Width (Imperial) UOMin
Terminal TypeRing
UL File NumberE23438
Overall Length (Imperial) UOMin
Connection Width (Metric)12.7
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Connection TypeCrimp
Minimum Conductor Size (Metric)13.3 mm²
Overall Length (Imperial)1.42
Maximum Conductor Size (Metric)13.3
Maximum Operating Temperature (Celsius)175.0
