3M Products & Supplies

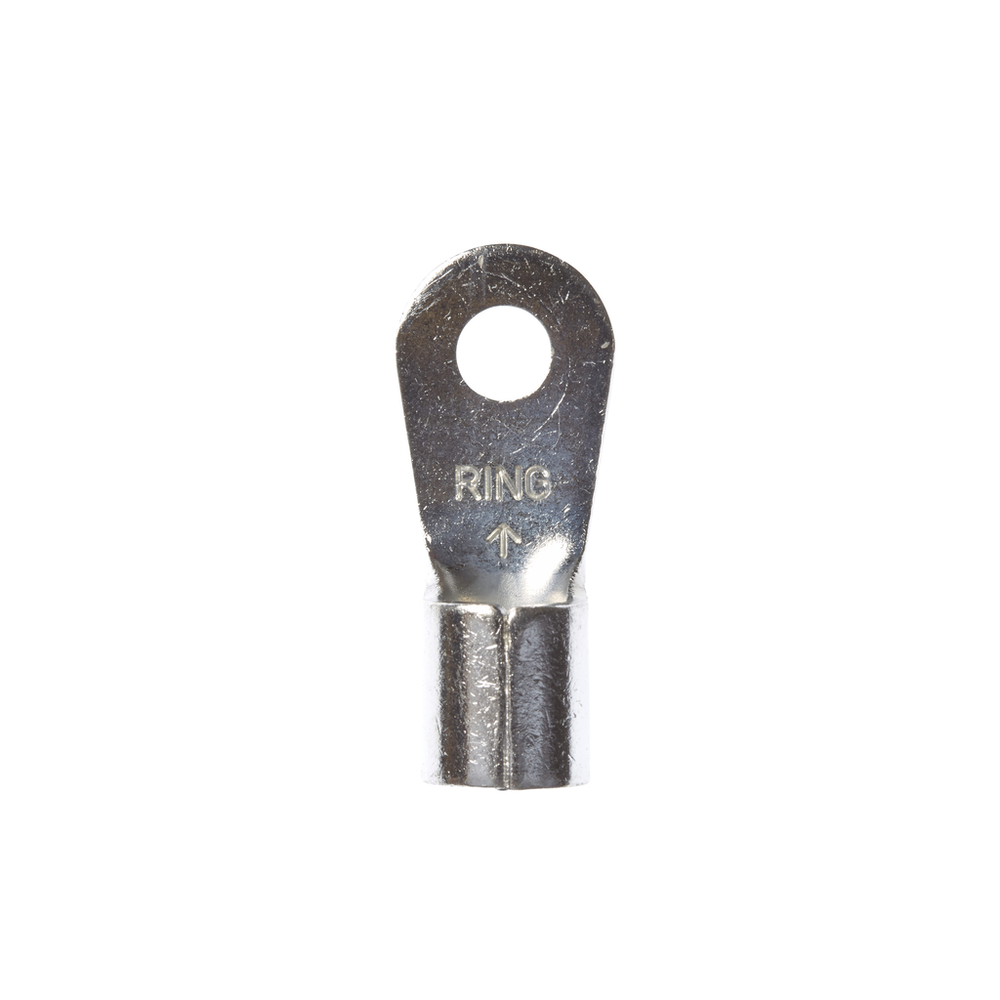

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M6-10R/SK, Stud Size 10, 200/Case - 7100164154

Sold As: 200-Pack
SKU: 7100164154
MPN: 7100164154
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021476
3M ID: 80610051528
5 Digit UPC: 2147
$194.78 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)13.3 mm²
Connection Width (Imperial) UOMin
UL File NumberE23438
Connection Width (Metric)4.826
Connection Width (Metric) UOMmm
Barrel StyleBrazed
Overall Length (Imperial)1.14
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Maximum Conductor Size (Imperial)6 AWG
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.47
Connection TypeCrimp
Minimum Conductor Size (Imperial)6 AWG
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)175.0
Connection Width (Imperial)0.19
Terminal StyleStandard
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)13.3
Ring TypeStandard
