3M Products & Supplies

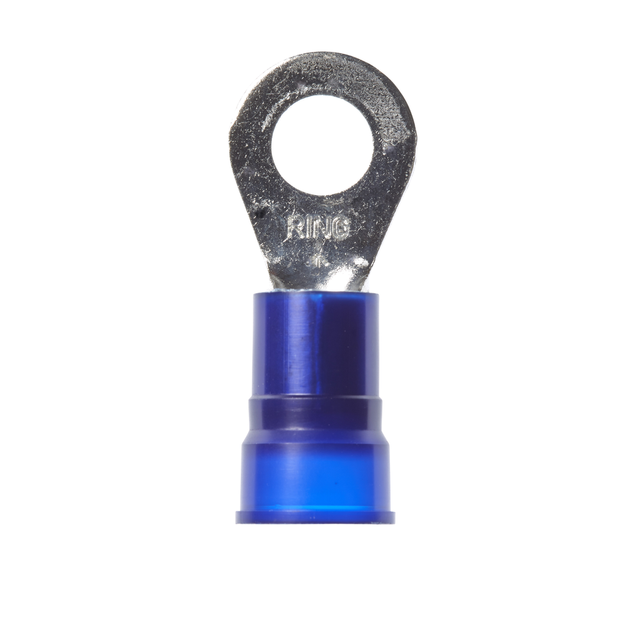

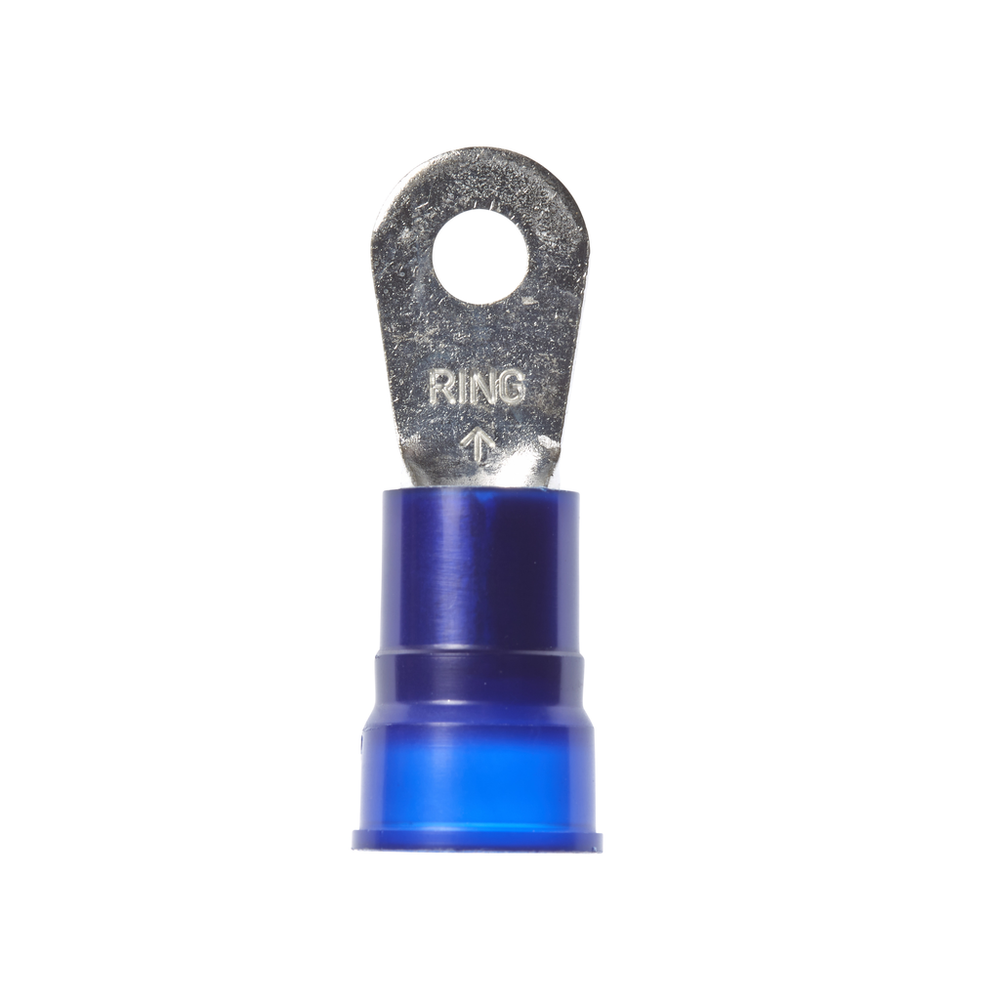

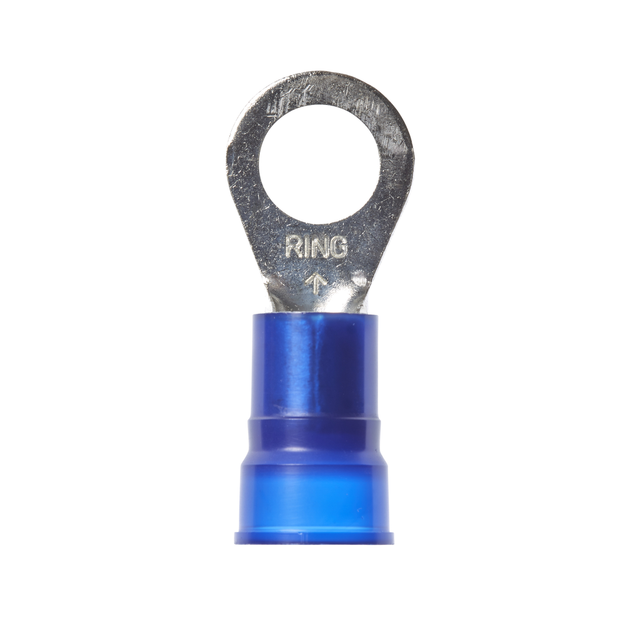

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN6-10R/SK, Stud Size 10, 200/Case - 7100014230

Sold As: 200-Pack
SKU: 7100014230
MPN: 7100014230
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082729
3M ID: 80008006084
5 Digit UPC: 8272
$247.23 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Recommended Voltage Rating UOMV
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Metric)4.826
Maximum Conductor Size (Metric)5.26
Minimum Conductor Size (Metric)3.31 mm²
Ring TypeStandard
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Terminal TypeRing
Connection Width (Metric) UOMmm
Maximum Voltage Rating600 to 1000 V
Barrel StyleBrazed Seam
Overall Width (Imperial)0.47
Product ColorBlue
Connection Width (Imperial)0.19
Maximum Operating Temperature (Fahrenheit)221.0
UL File NumberE23438
Connection TypeCrimp
Barrel Length (Imperial)0.39 Inch
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNylon
Terminal StyleStandard
Maximum Operating Temperature (Celsius)105.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial)1.5
