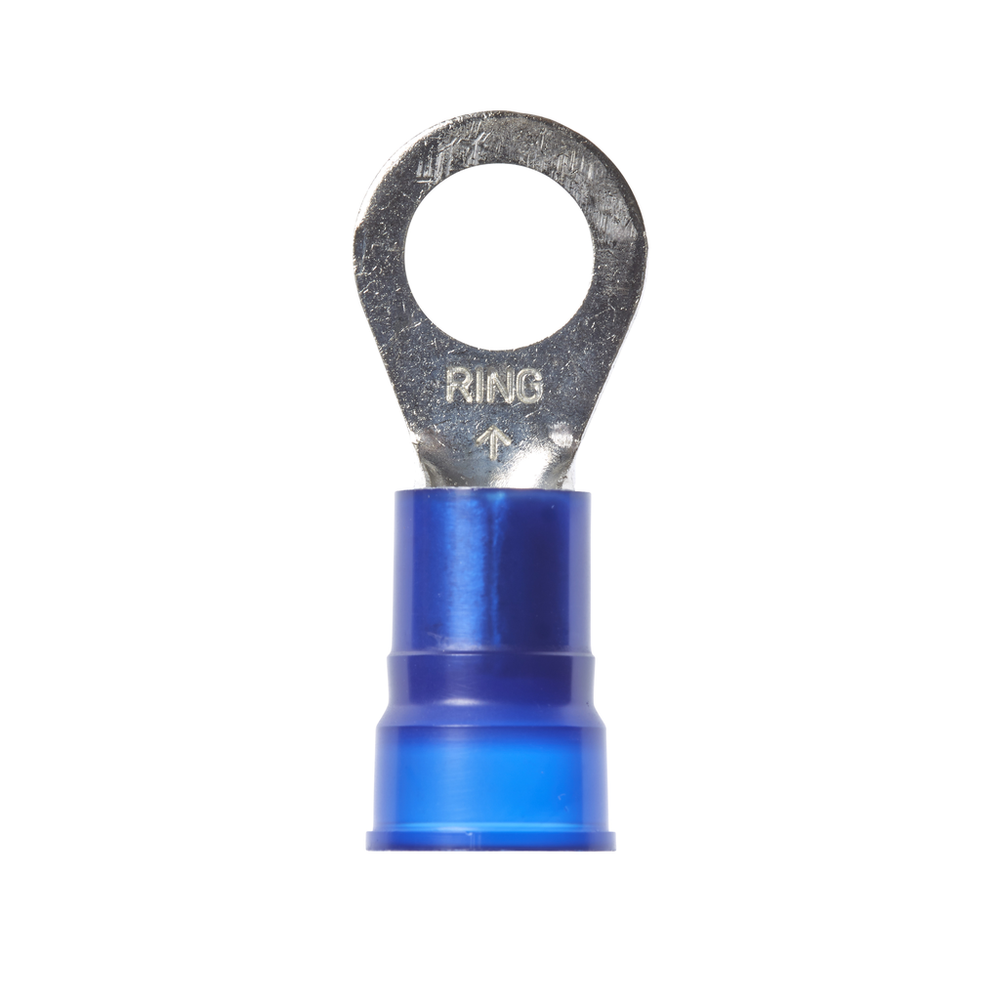

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN6-38RK, Stud Size 3/8, 200/Case - 7000132149

Sold As: 200-Pack
SKU: 7000132149
MPN: 7000132149
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082750
3M ID: 80008006118
5 Digit UPC: 8275
$247.23 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.58
Terminal TypeRing
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)13.3
UL File NumberE23438
Minimum Conductor Size (Imperial)6 AWG
Maximum Recommended Voltage Rating600.0
Connection Width (Imperial) UOMin
Insulation MaterialNylon
Product ColorBlue
Connection TypeCrimp
Ring TypeStandard
Barrel StyleBrazed Seam
Overall Width (Imperial)0.63
Minimum Conductor Size (Metric)13.3 mm²
Maximum Conductor Size (Imperial)6 AWG
Connection Width (Imperial)0.375
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating UOMV
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Imperial)0.39 Inch
Connection Width (Metric) UOMmm
Connection Width (Metric)9.525
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Voltage Rating600 to 1000 V
Operating Temperature Range (Celsius)-40 °C to 105 °C
Terminal StyleStandard
