3M Products & Supplies

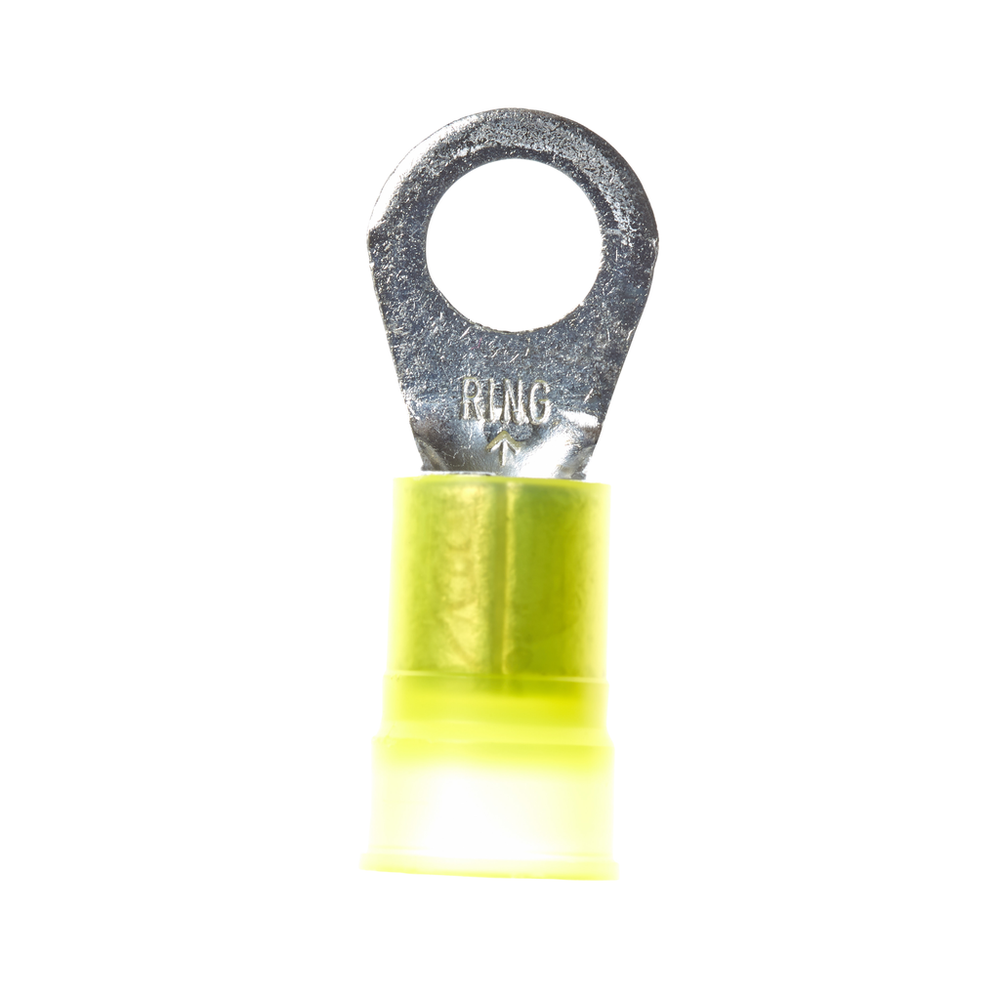

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN4-38RK, Stud Size 3/8, 200/Case - 7100163455

Sold As: 200-Pack
SKU: 7100163455
MPN: 7100163455
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082804
3M ID: 80008006167
5 Digit UPC: 8280
$319.14 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)4 AWG
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Maximum Recommended Voltage Rating600.0
Operating Temperature Range (Celsius)-40 °C to 105 °C
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Maximum Voltage Rating600 to 1000 V
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.39 Inch
Insulation MaterialNylon
Terminal StyleStandard
Connection Width (Metric)9.525
Connection Width (Imperial)0.375
Ring TypeStandard
Maximum Conductor Size (Imperial)4 AWG
Connection TypeCrimp
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Maximum Recommended Voltage Rating UOMV
Overall Length (Imperial)0.74
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)0.68
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)21.2 mm²
Maximum Conductor Size (Metric)21.2
Barrel StyleBrazed Seam
Terminal TypeRing
