3M Products & Supplies

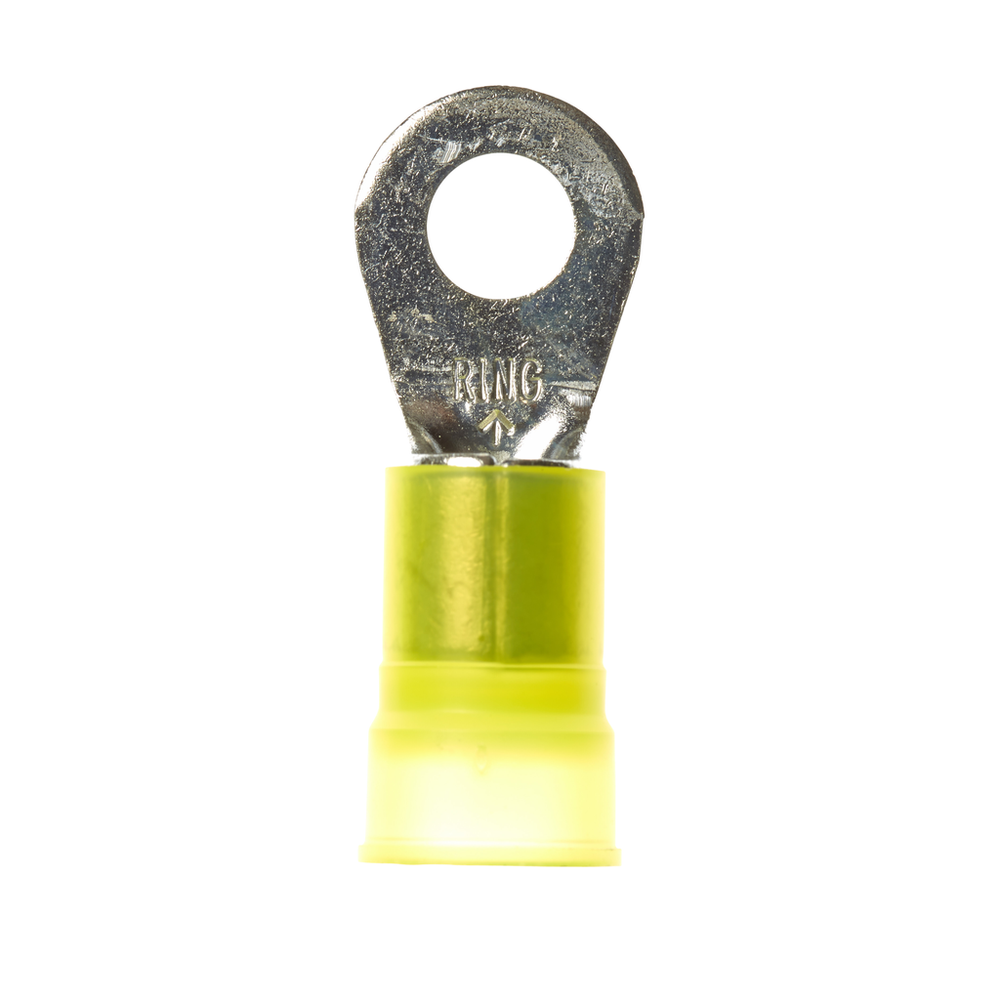

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN4-516RK, Stud Size 5/16, 200/Case - 7100163454

Sold As: 200-Pack
SKU: 7100163454
MPN: 7100163454
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082798
3M ID: 80008006159
5 Digit UPC: 8279
$319.14 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Maximum Recommended Voltage Rating600.0
Insulation MaterialNylon
UL File NumberE23438
Connection Width (Imperial)0.315
Overall Width (Imperial) UOMin
Terminal TypeRing
Ring TypeStandard
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Conductor Size (Imperial)4 AWG
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Fahrenheit)221.0
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Connection Width (Metric)8.0
Overall Width (Imperial)0.68
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial) UOMin
Terminal StyleStandard
Maximum Voltage Rating600 to 1000 V
Barrel StyleBrazed Seam
Connection TypeCrimp
Minimum Conductor Size (Metric)21.2 mm²
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Minimum Conductor Size (Imperial)4 AWG
Barrel Length (Imperial)0.39 Inch
Operating Temperature Range (Celsius)-40 °C to 105 °C
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.74
Maximum Conductor Size (Metric)21.2
