3M Products & Supplies

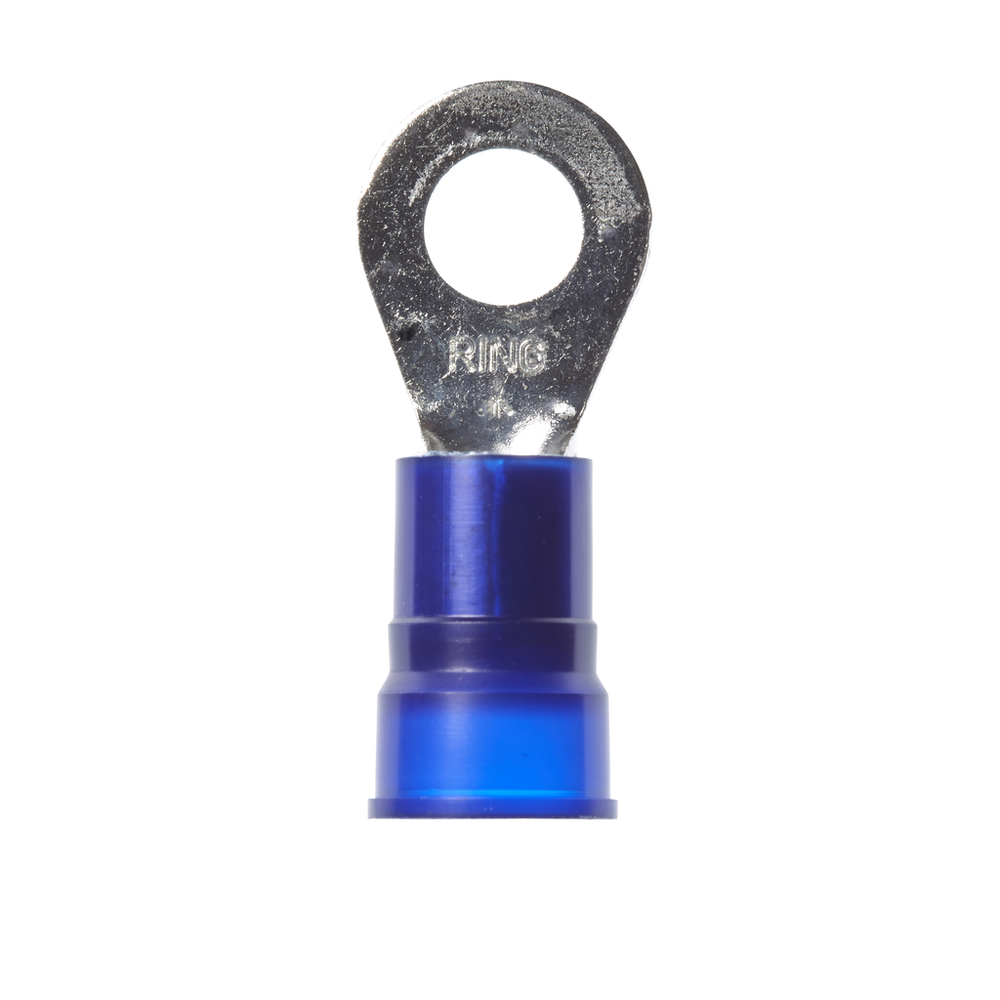

3M™ Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN6-516RK, Stud Size 5/16, 200/Case - 7000132148

Sold As: 200-Pack
SKU: 7000132148
MPN: 7000132148
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007082743
3M ID: 80008006100
5 Digit UPC: 8274
$247.23 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Operating Temperature (Fahrenheit)-40 °F to 221 °F
Overall Length (Imperial) UOMin
Connection Width (Metric)8.0
Terminal StyleStandard
Maximum Conductor Size (Metric)13.3
Maximum Operating Temperature (Fahrenheit) UOMDegree
Connection Width (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)13.3 mm²
Maximum Conductor Size (Imperial)6 AWG
Maximum Recommended Voltage Rating UOMV
Operating Temperature Range (Celsius)-40 °C to 105 °C
Connection TypeCrimp
Overall Width (Imperial)0.63
Overall Width (Imperial) UOMin
Product ColorBlue
Connection Width (Imperial)0.315
Insulation MaterialNylon
Barrel StyleBrazed Seam
Maximum Recommended Voltage Rating600.0
Barrel Length (Imperial)0.39 Inch
UL File NumberE23438
Ring TypeStandard
Maximum Voltage Rating600 to 1000 V
Minimum Conductor Size (Imperial)6 AWG
Overall Length (Imperial)1.58
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Terminal TypeRing
