3M Products & Supplies

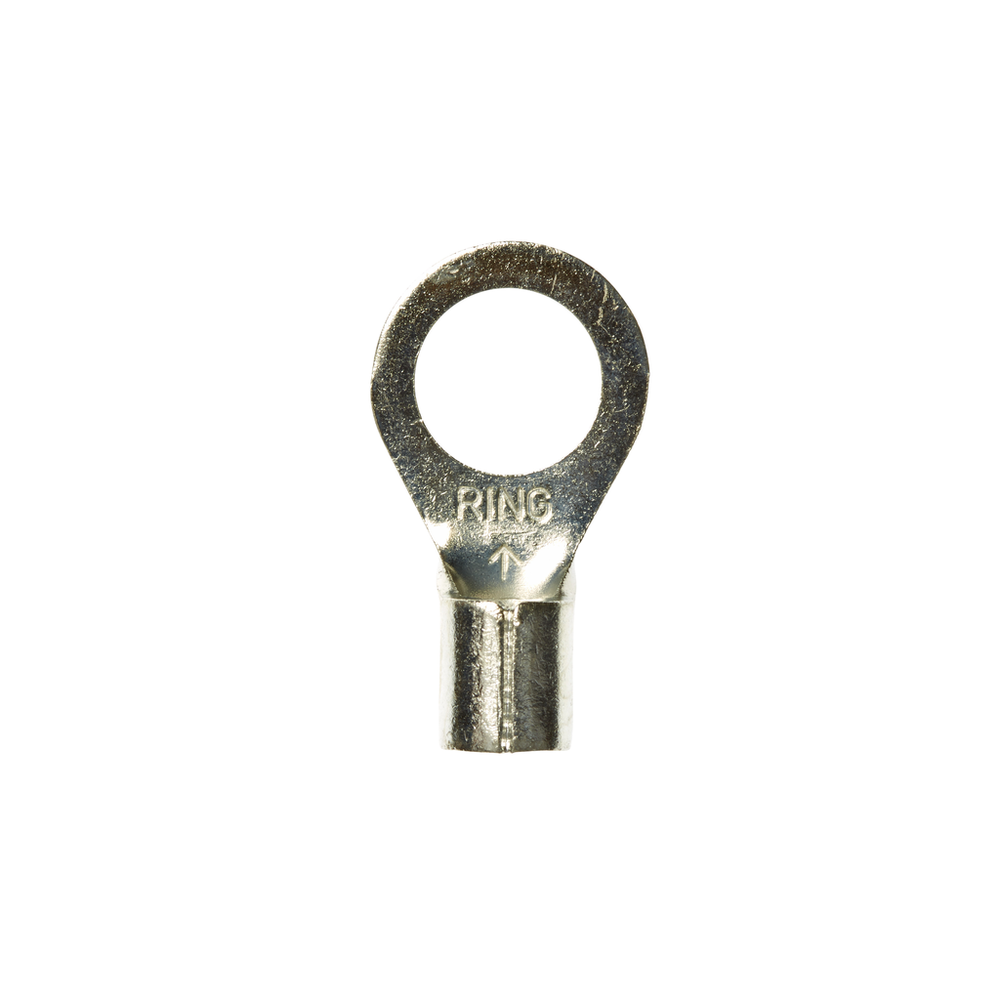

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M8-38RK, Stud Size 3/8, 200/Case - 7100164150

Sold As: 200-Pack
SKU: 7100164150
MPN: 7100164150
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021230
3M ID: 80610051288
5 Digit UPC: 2123
$194.78 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Terminal StyleStandard
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)8.37
Connection Width (Metric)9.525
Barrel StyleBrazed
Connection Width (Imperial)0.375
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)1.06
Overall Width (Imperial)0.59
Minimum Conductor Size (Metric)8.37 mm²
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Ring TypeStandard
UL File NumberE23438
Overall Width (Imperial) UOMin
Terminal TypeRing
Connection TypeCrimp
Maximum Conductor Size (Imperial)8 AWG
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)8 AWG
Maximum Operating Temperature (Celsius)175.0
