3M Products & Supplies

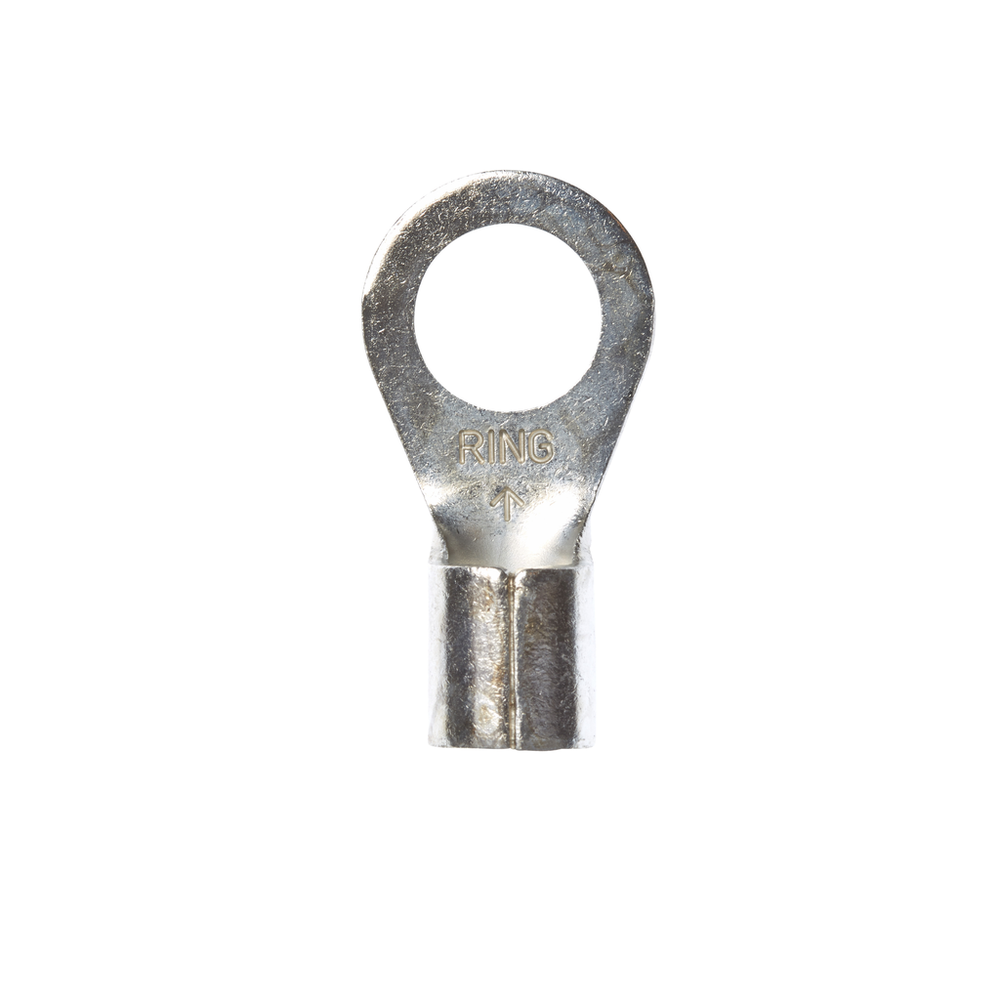

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M6-38RK, Stud Size 3/8, 1/Case - 7100135166

Sold As: 200-Pack
SKU: 7100135166
MPN: 7100135166
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021520
3M ID: 80610051585
5 Digit UPC: 2152
$250.22 ($1.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.375
Minimum Conductor Size (Imperial)6 AWG
Barrel StyleBrazed
Ring TypeStandard
Maximum Conductor Size (Metric)13.3
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Terminal TypeRing
Connection TypeCrimp
Connection Width (Metric)9.525
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.63
Terminal StyleStandard
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)13.3 mm²
Maximum Operating Temperature (Celsius)175.0
Overall Length (Imperial)1.22
Maximum Conductor Size (Imperial)6 AWG
Overall Width (Imperial) UOMin
