3M Products & Supplies

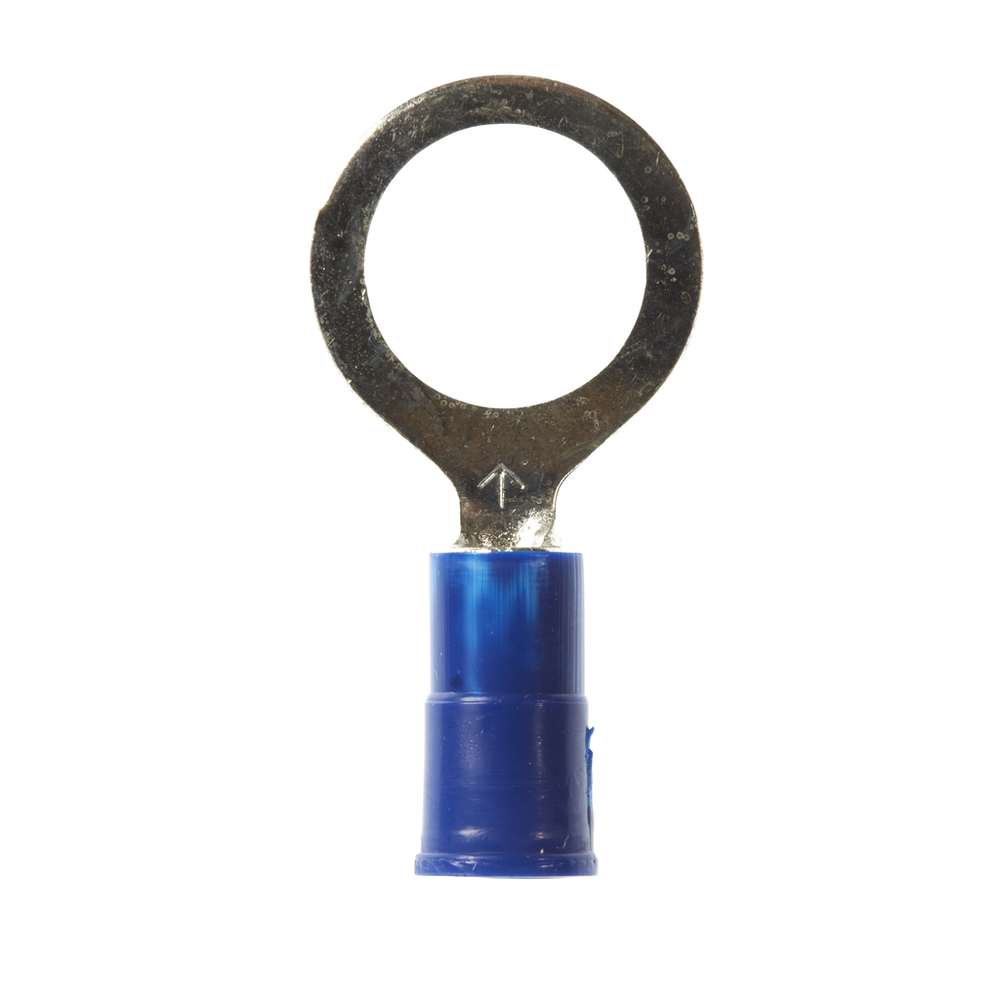

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV14-38RK, Stud Size 3/8, 1000/Case - 7100163910

Sold As: 1000-Pack
SKU: 7100163910
MPN: 7100163910
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007005469
3M ID: 80610010094
5 Digit UPC: 546
$529.68 ($0.53 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric)1.31 mm²
Insulation MaterialVinyl
Barrel StyleBrazed
Overall Width (Imperial) UOMin
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Connection Width (Metric)9.525
Maximum Conductor Size (Metric)2.08
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.375
Terminal TypeRing
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.56
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.13
