3M Products & Supplies

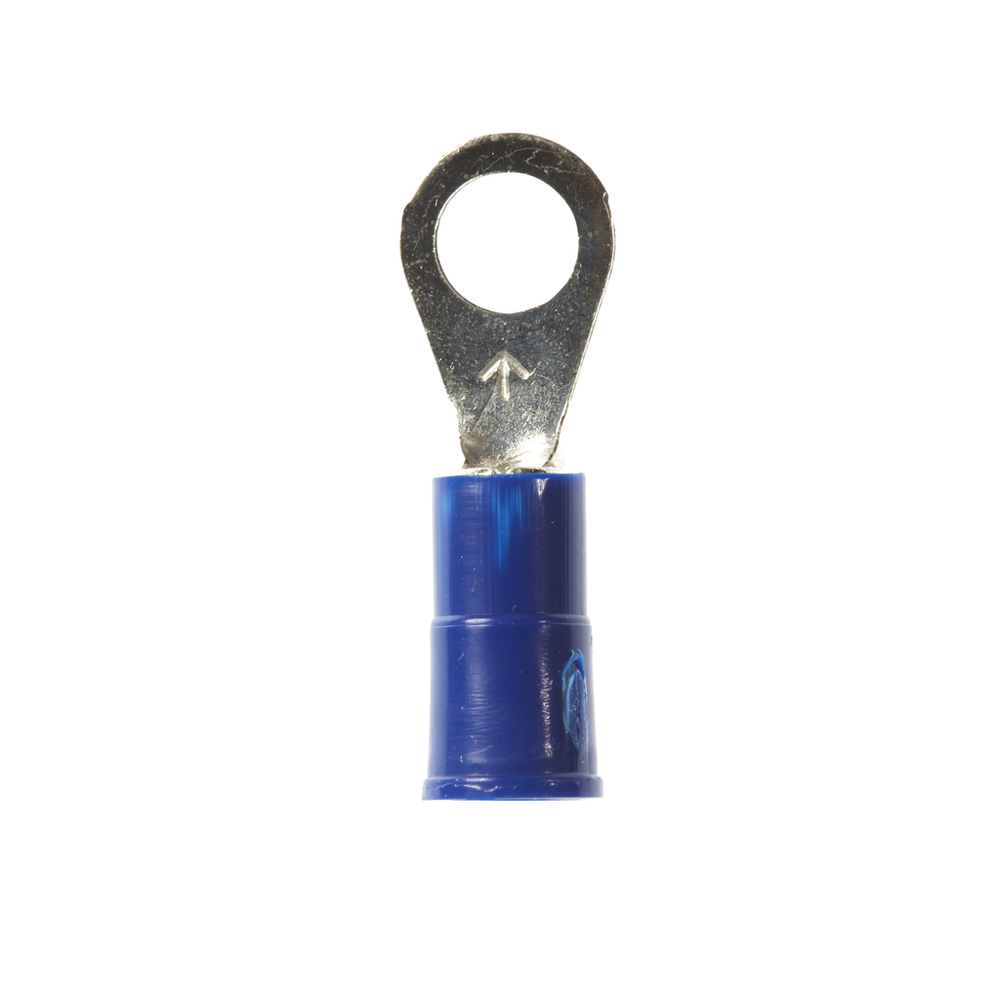

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV14-10R/LK, Stud Size 10, 1000/Case - 7000132246

Sold As: 1000-Pack
SKU: 7000132246
MPN: 7000132246
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007014218
3M ID: 80610040646
5 Digit UPC: 1421
$367.90 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Imperial)8 AWG
Maximum Conductor Size (Metric)8.37
Connection Width (Metric)4.826
Minimum Conductor Size (Metric)8.37 mm²
Barrel StyleBrazed
Product ColorBlue
Overall Length (Imperial)0.93
Overall Width (Imperial) UOMin
Ring TypeStandard
Terminal StyleStandard
Connection Width (Imperial)0.19
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.31
Solution forWireless Network: Infrastructure Accessories
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Terminal TypeRing
Insulation MaterialVinyl
