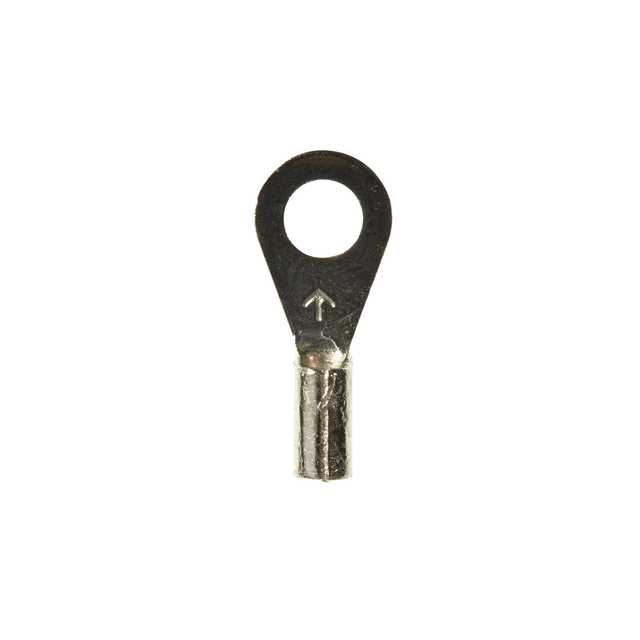

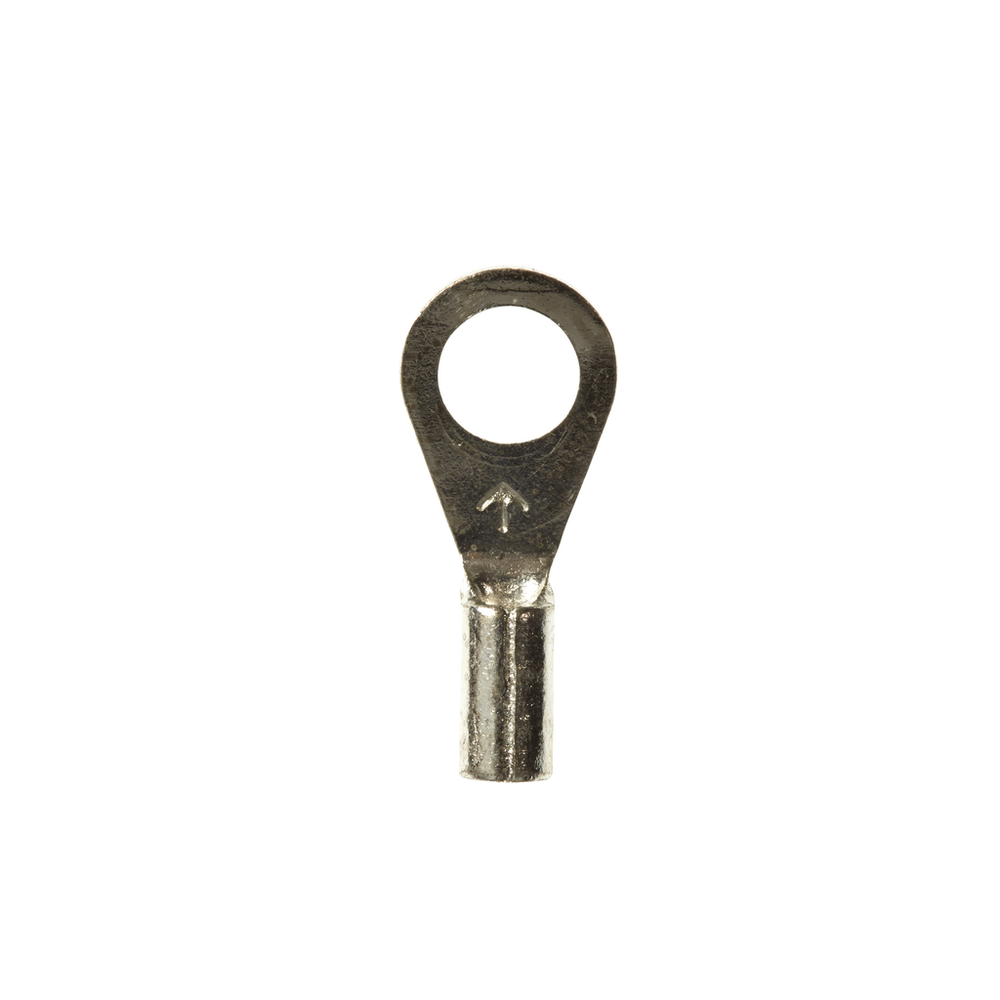

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M18-10R/LK, Stud Size 10, 1000/Case - 7100163923

Sold As: 1000-Pack
SKU: 7100163923
MPN: 7100163923
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010234
3M ID: 80610034870
5 Digit UPC: 1023
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.31
Maximum Conductor Size (Metric)0.823
Terminal StyleStandard
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Connection Width (Imperial) UOMin
Connection Width (Metric)4.826
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial)0.74
Connection Width (Metric) UOMmm
Terminal TypeRing
Connection TypeCrimp
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial)0.19
UL File NumberE23438
