3M Products & Supplies

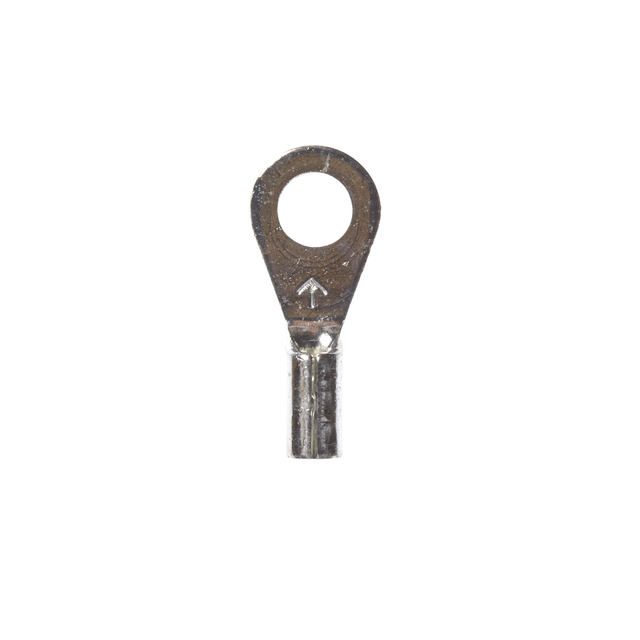

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M18-8R/LK, Stud Size 8, 1000/Case - 7100163922

Sold As: 1000-Pack
SKU: 7100163922
MPN: 7100163922
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010210
3M ID: 80610034854
5 Digit UPC: 1021
$245.69 ($0.25 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)175.0
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.164
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)0.823
Terminal StyleStandard
Connection TypeCrimp
Barrel StyleBrazed
Overall Width (Imperial)0.31
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Overall Length (Imperial)0.74
Connection Width (Imperial) UOMin
Connection Width (Metric)4.166
Maximum Conductor Size (Imperial)18 AWG
UL File NumberE23438
Overall Width (Imperial) UOMin
Insulation MaterialNon-insulated
