3M Products & Supplies

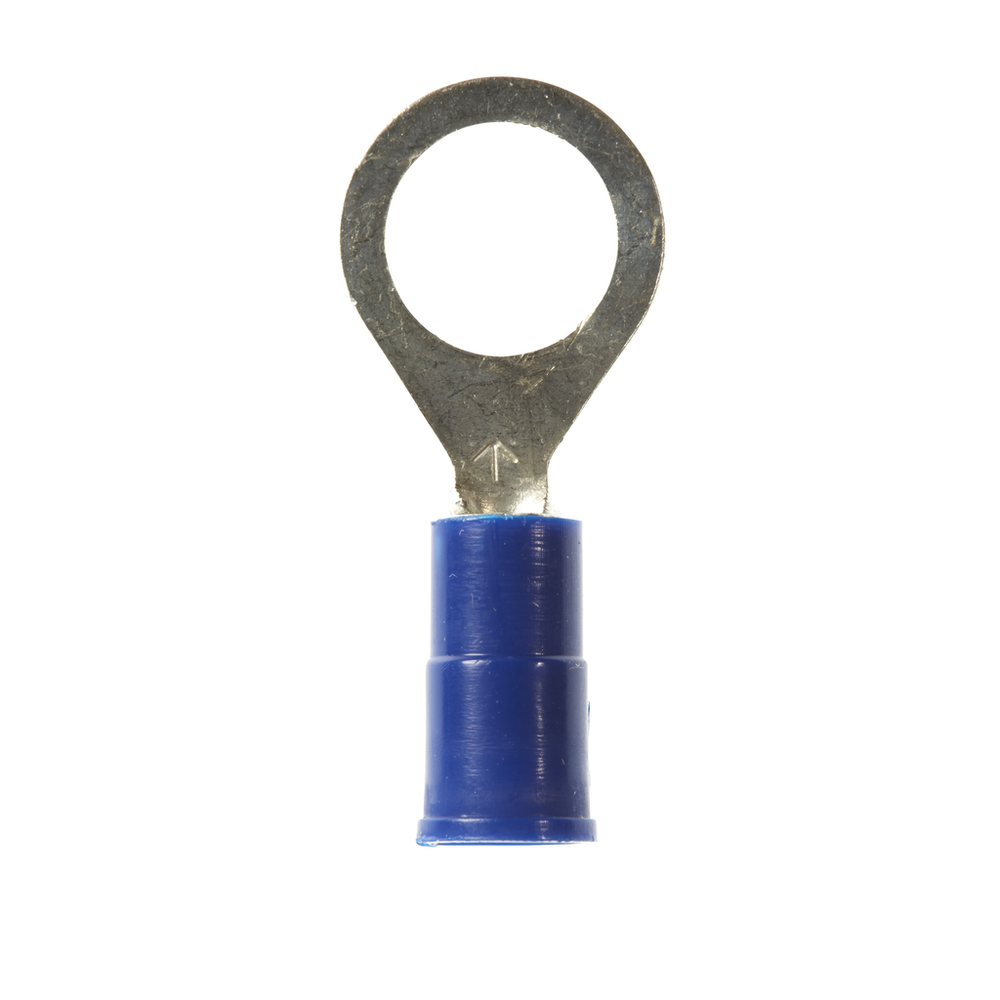

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV14-516R/SK, Stud Size 5/16, 1000/Case - 7100163999

Sold As: 1000-Pack
SKU: 7100163999
MPN: 7100163999
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014249
3M ID: 80610040679
5 Digit UPC: 1424
$466.71 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.47
Solution forWireless Network: Infrastructure Accessories
Ring TypeStandard
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)8.0
UL File NumberE23438
Insulation MaterialVinyl
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)1.08
Terminal TypeRing
Connection Width (Imperial)0.315
Minimum Conductor Size (Imperial)16 AWG
Terminal StyleStandard
Barrel StyleBrazed
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius)105.0
