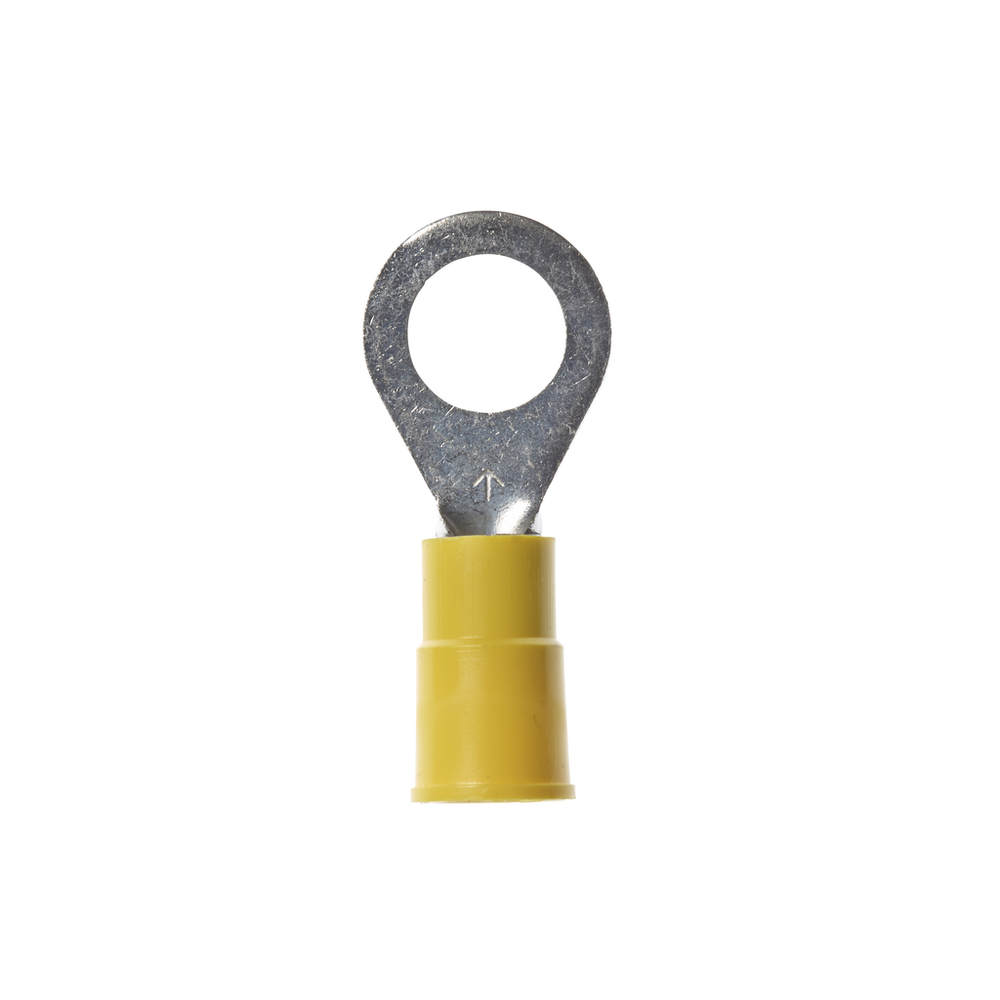

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-516R/SK, Stud Size 5/16, 500/Case - 7000132261

Sold As: 500-Pack
SKU: 7000132261
MPN: 7000132261
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019268
3M ID: 80610048607
5 Digit UPC: 1926
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial)0.53
Terminal TypeRing
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial) UOMin
Terminal StyleStandard
Barrel StyleBrazed
Product ColorYellow
Solution forWireless Network: Infrastructure Accessories
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Overall Length (Imperial)1.26
Barrel Length (Imperial)0.25 Inch
Connection Width (Metric)8.0
Connection Width (Imperial)0.315
Ring TypeStandard
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Maximum Conductor Size (Metric)5.26
