3M Products & Supplies

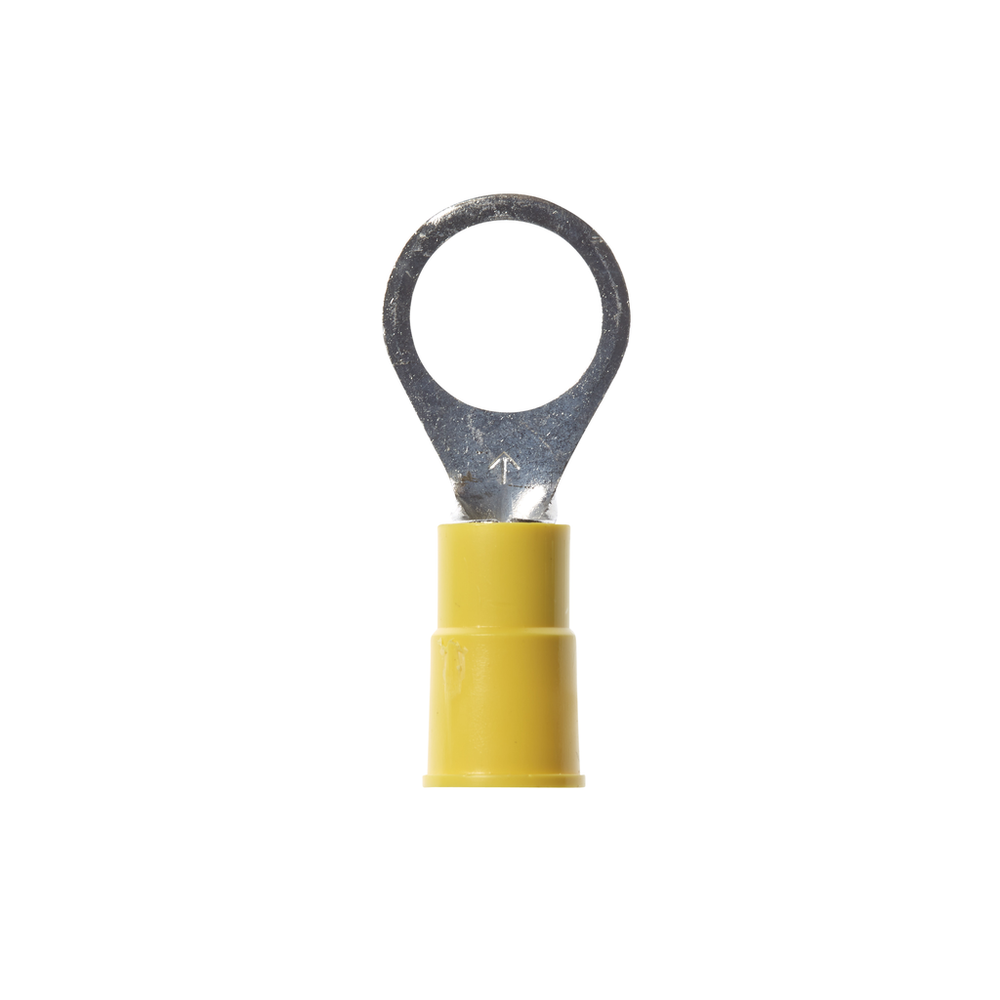

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-38R/SK, Stud Size 3/8, 500/Case - 7100164086

Sold As: 500-Pack
SKU: 7100164086
MPN: 7100164086
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019282
3M ID: 80610048623
5 Digit UPC: 1928
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Ring TypeStandard
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.26
Connection Width (Metric) UOMmm
Connection Width (Metric)9.525
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.375
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.54
UL File NumberE23438
Insulation MaterialVinyl
Terminal StyleStandard
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
