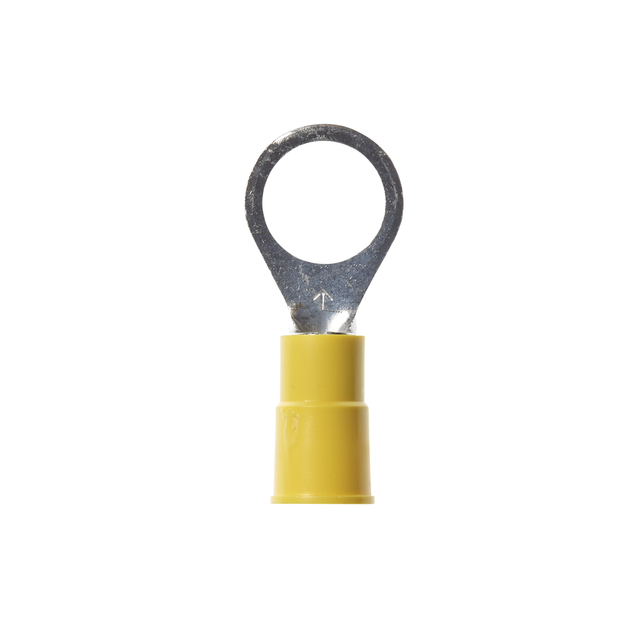

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-8RK, Stud Size 8, 500/Case - 7100164085

Sold As: 500-Pack
SKU: 7100164085
MPN: 7100164085
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019220
3M ID: 80610048565
5 Digit UPC: 1922
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.38
Terminal TypeRing
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Ring TypeStandard
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Barrel StyleBrazed
Overall Length (Imperial)1.03
Minimum Conductor Size (Metric)3.31 mm²
Connection Width (Imperial)0.164
Terminal StyleStandard
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Metric)5.26
Connection Width (Metric)4.166
Insulation MaterialVinyl
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
