3M Products & Supplies

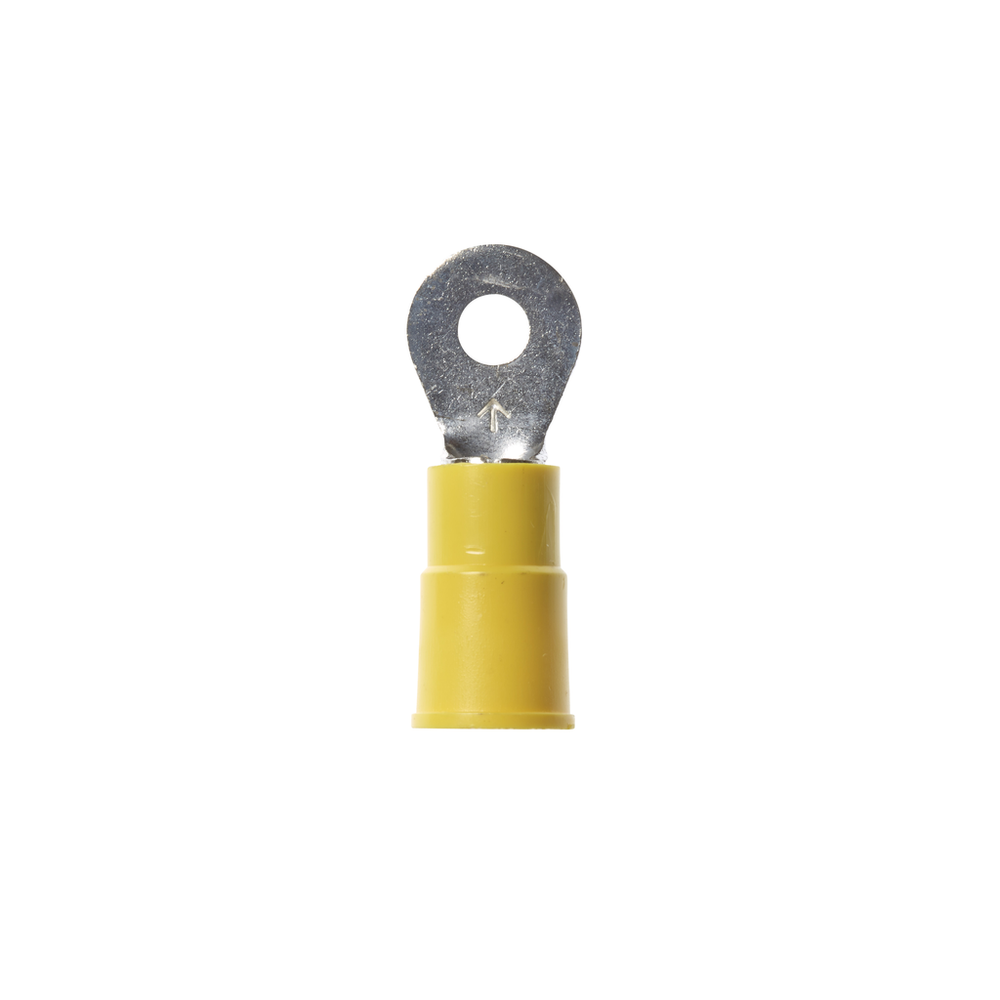

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-6RK, Stud Size 6, 500/Case - 7100164084

Sold As: 500-Pack
SKU: 7100164084
MPN: 7100164084
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019206
3M ID: 80610048540
5 Digit UPC: 1920
$273.45 ($0.55 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial)0.138
Terminal StyleStandard
Barrel StyleBrazed
Terminal TypeRing
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Solution forWireless Network: Infrastructure Accessories
Connection Width (Metric)3.5
Ring TypeStandard
Minimum Conductor Size (Imperial)12 AWG
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric) UOMmm
Insulation MaterialVinyl
Overall Length (Imperial) UOMin
Overall Length (Imperial)1.03
Overall Width (Imperial)0.38
UL File NumberE23438
