3M Products & Supplies

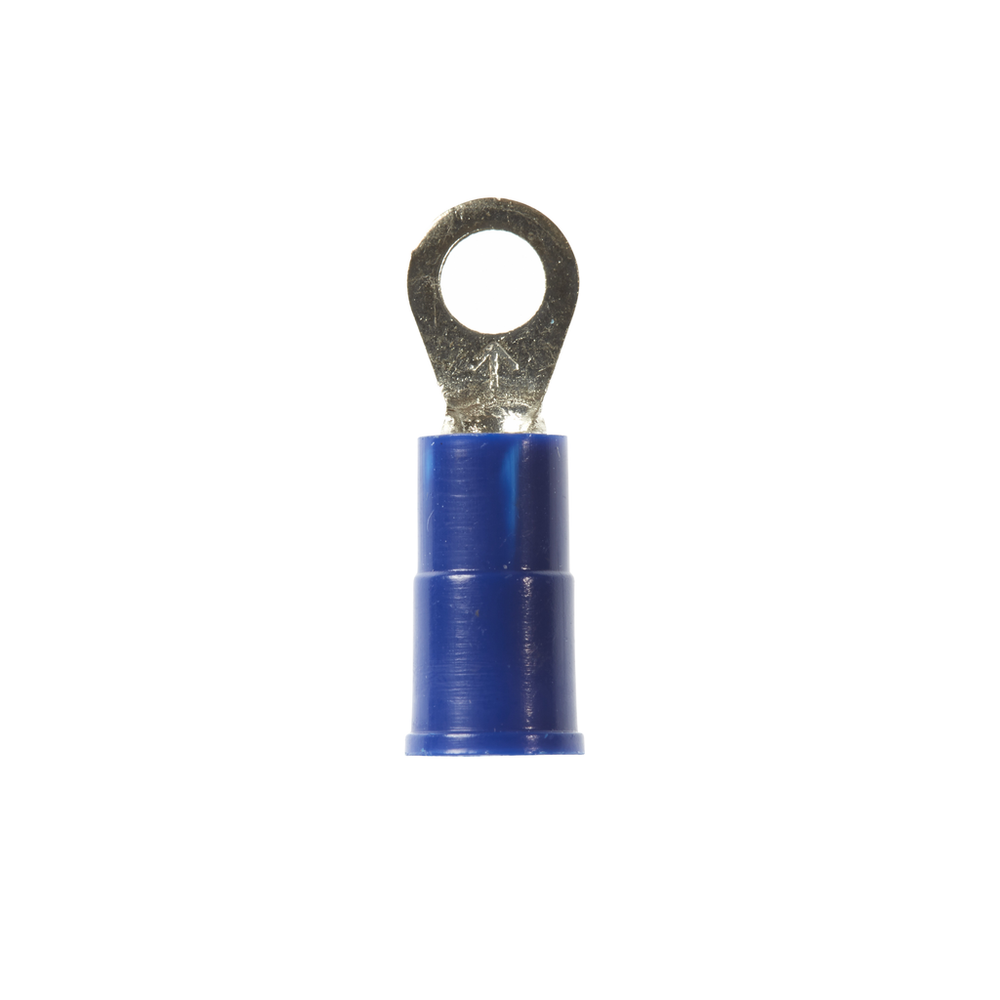

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-12RX, Stud Size 1/2, 500/Case - 7100011400

Sold As: 50-Pack
SKU: 7100011400
MPN: 7100011400
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128603796
3M ID: 80611606692
5 Digit UPC: 60379
$79.79 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)16 AWG
Units per Case500.0
Barrel StyleBrazed
Insulation MaterialVinyl
Minimum Stud Diameter (Metric)3.5
Maximum Operating Temperature (Celsius)105.0
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
UL File NumberE23438
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Metric)2.08
Minimum Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Terminal TypeRing
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.31 mm²
