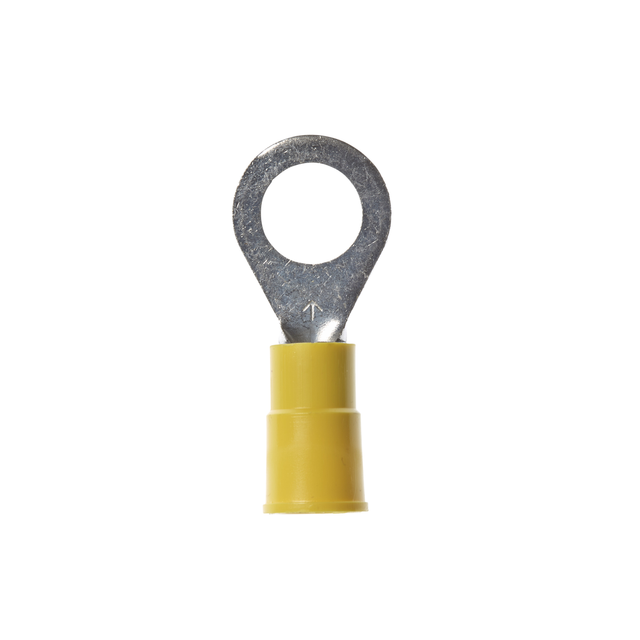

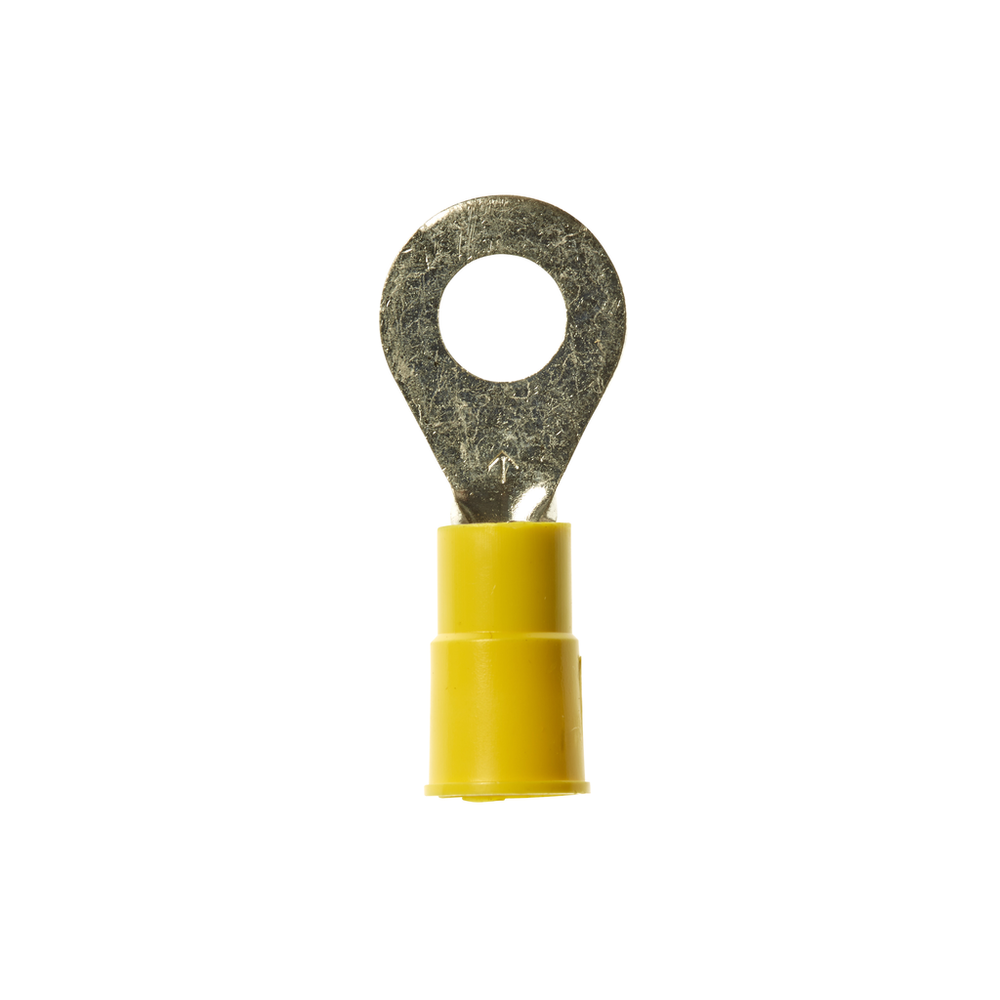

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-14R/SK, Stud Size 1/4, 500/Case - 7100007053

Sold As: 500-Pack
SKU: 7100007053
MPN: 7100007053
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019244
3M ID: 80610048581
5 Digit UPC: 1924
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.53
Product ColorYellow
UL File NumberE23438
Insulation MaterialVinyl
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Maximum Conductor Size (Metric)5.26
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Imperial)12 AWG
Solution forWireless Network: Infrastructure Accessories
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleStandard
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.26
Overall Width (Imperial) UOMin
Ring TypeStandard
Connection Width (Imperial)0.25
