3M Products & Supplies

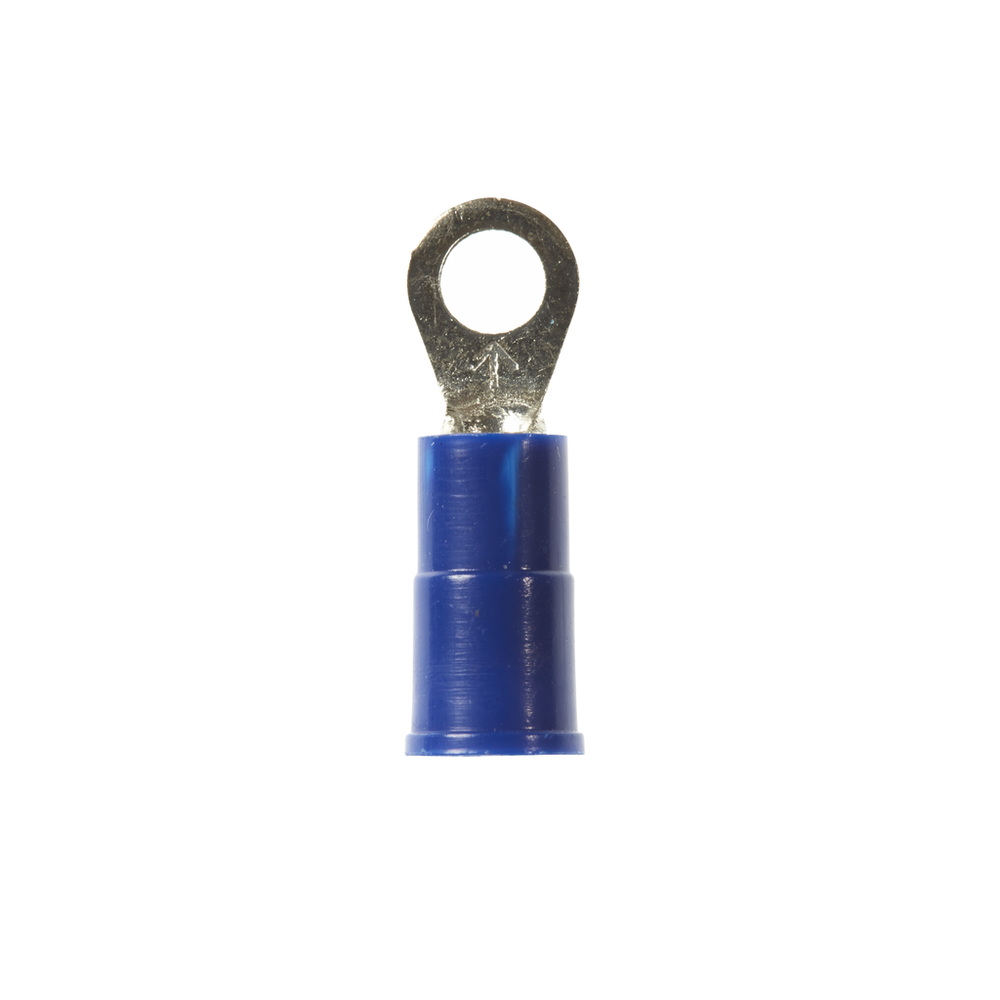

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV14-6R/SK, Stud Size 6, 1/Case - 7100084105

Sold As: 1000-Pack
SKU: 7100084105
MPN: 7100084105
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014140
3M ID: 80610040570
5 Digit UPC: 1414
$404.52 ($0.40 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Ring Tongue ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Ring TypeStandard
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Metric)1.31 mm²
UL File NumberE23438
Maximum Conductor Size (Metric)2.08
Connection Width (Imperial)0.138
Connection Width (Metric)3.5
Overall Length (Imperial) UOMin
Terminal StyleStandard
Insulation MaterialVinyl
Terminal TypeRing
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.8
Overall Width (Imperial)0.25
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Connection Width (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
