3M Products & Supplies

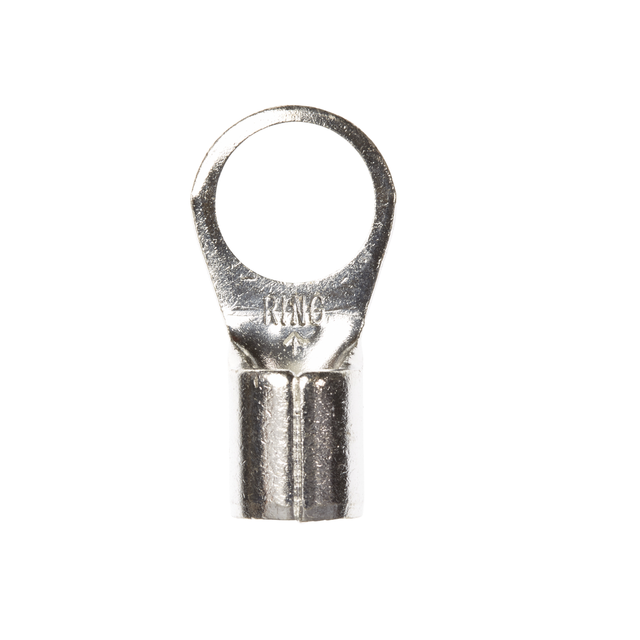

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M8-12R/SK, Stud Size 1/2, 200/Case - 7100164151

Sold As: 200-Pack
SKU: 7100164151
MPN: 7100164151
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021261
3M ID: 80610051312
5 Digit UPC: 2126
$224.75 ($1.12 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel StyleBrazed
Minimum Conductor Size (Metric)8.37 mm²
Maximum Operating Temperature (Celsius)175.0
Ring TypeStandard
Connection TypeCrimp
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Imperial)0.5
Overall Width (Imperial)0.81
Maximum Conductor Size (Metric)8.37
Maximum Conductor Size (Imperial)8 AWG
Overall Width (Imperial) UOMin
Connection Width (Metric)12.7
Insulation MaterialNon-insulated
Minimum Conductor Size (Imperial)8 AWG
Overall Length (Imperial)1.41
Connection Width (Metric) UOMmm
UL File NumberE23438
Overall Length (Imperial) UOMin
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
