3M Products & Supplies

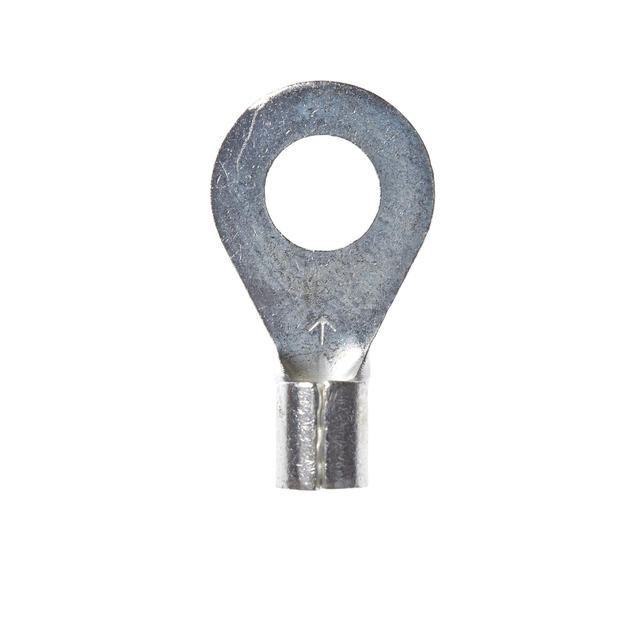

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU10-8RK, Stud Size 8, 500/Case - 7100164076

Sold As: 500-Pack
SKU: 7100164076
MPN: 7100164076
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018803
3M ID: 80610048144
5 Digit UPC: 1880
$122.85 ($0.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE23438
Maximum Operating Temperature (Celsius)105.0
Connection Width (Metric)4.166
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Overall Length (Imperial)0.73
Overall Width (Imperial)0.38
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Solution forWireless Network: Infrastructure Accessories
Terminal TypeRing
Minimum Conductor Size (Metric)3.31 mm²
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Barrel StyleButted
Connection Width (Imperial)0.164
Connection Width (Imperial) UOMin
Terminal StyleStandard
Maximum Conductor Size (Metric)5.26
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)10 AWG
