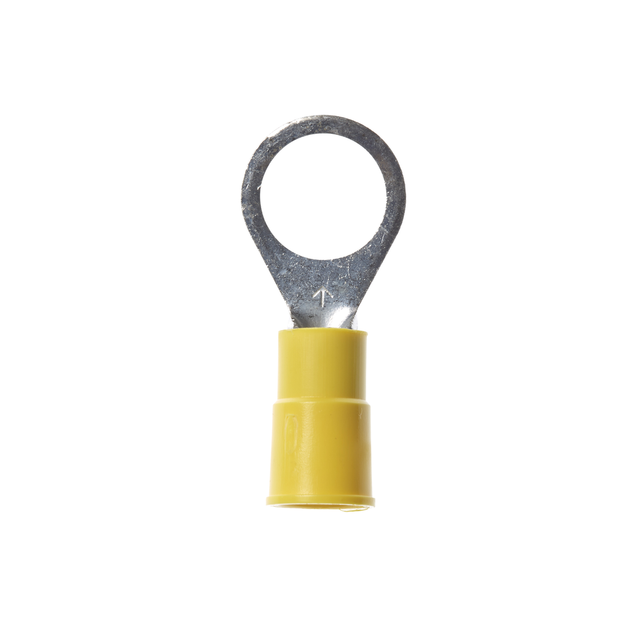

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU10-10RK, Stud Size 10, 500/Case - 7010318948

Sold As: 500-Pack
SKU: 7010318948
MPN: 7010318948
For an accurate lead time please contact us
UPC: 00054007019510
3M ID: 80610049050
5 Digit UPC: 1951
$183.95 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric)5.26
Connection Width (Imperial)0.19
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)10 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.38
Connection TypeCrimp
Connection Width (Metric) UOMmm
Terminal TypeRing
Connection Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Insulation MaterialVinyl
Connection Width (Metric)4.826
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial) UOMin
Overall Length (Imperial)1.03
