3M Products & Supplies

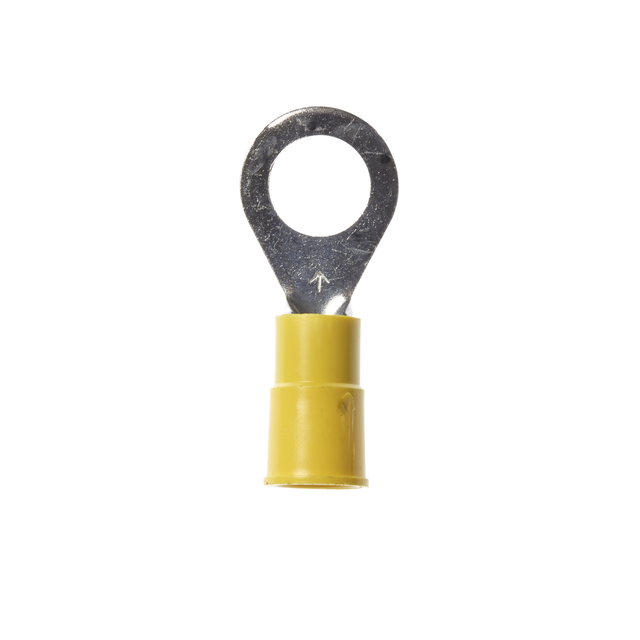

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU10-38R/SK, Stud Size 3/8, 500/Case - 7100164096

Sold As: 500-Pack
SKU: 7100164096
MPN: 7100164096
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019565
3M ID: 80610049126
5 Digit UPC: 1956
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Metric)5.26
Connection TypeCrimp
Overall Width (Imperial) UOMin
Insulation MaterialVinyl
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.26
Maximum Conductor Size (Imperial)10 AWG
Overall Width (Imperial)0.54
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.375
Connection Width (Metric)9.525
Terminal TypeRing
