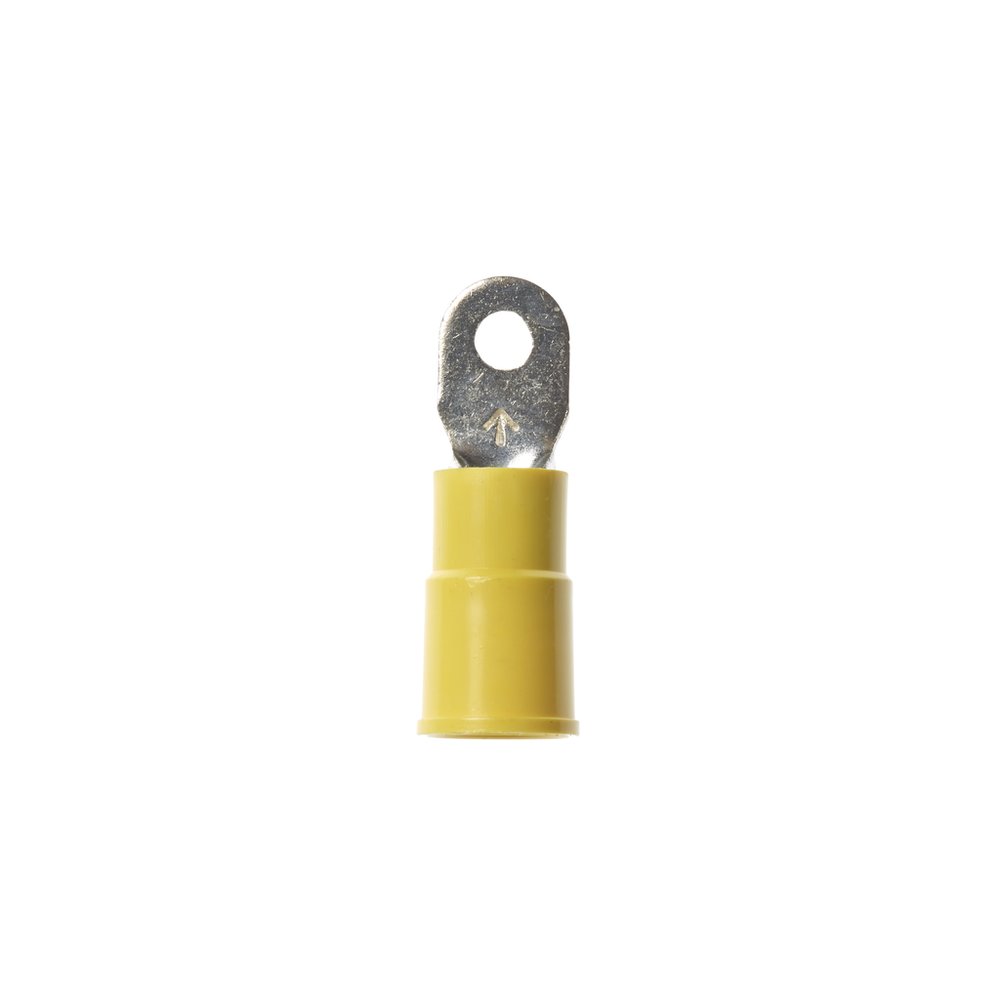

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU10-4R/SK, Stud Size 4, 500/Case - 7100164091

Sold As: 500-Pack
SKU: 7100164091
MPN: 7100164091
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019466
3M ID: 80610049001
5 Digit UPC: 1946
$207.91 ($0.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)105.0
Insulation MaterialVinyl
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric)2.845
Terminal TypeRing
Overall Width (Imperial)0.28
Connection Width (Imperial)0.112
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)0.98
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)3.31 mm²
Minimum Conductor Size (Imperial)12 AWG
Overall Width (Imperial) UOMin
Connection TypeCrimp
Maximum Conductor Size (Metric)5.26
Connection Width (Metric) UOMmm
