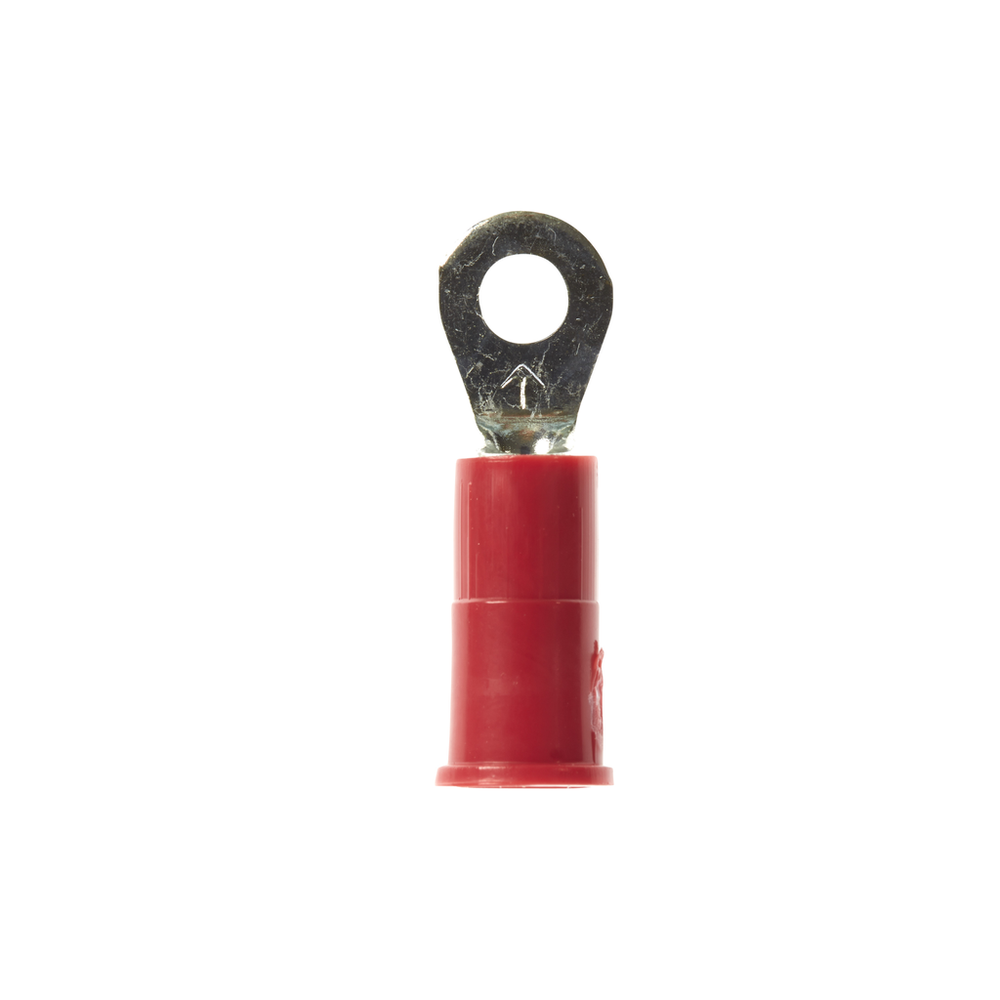

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU18-516R/SK, Stud Size 5/16, 1000/Case - 7100163935

Sold As: 1000-Pack
SKU: 7100163935
MPN: 7100163935
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007010906
3M ID: 80610035604
5 Digit UPC: 1090
$429.32 ($0.43 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.315
Insulation MaterialVinyl
Minimum Conductor Size (Metric)0.326 mm²
Overall Length (Imperial)1.08
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial)0.47
Maximum Conductor Size (Metric)0.823
Connection TypeCrimp
Maximum Conductor Size (Imperial)18 AWG
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Connection Width (Metric)8.0
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric) UOMmm
