3M Products & Supplies

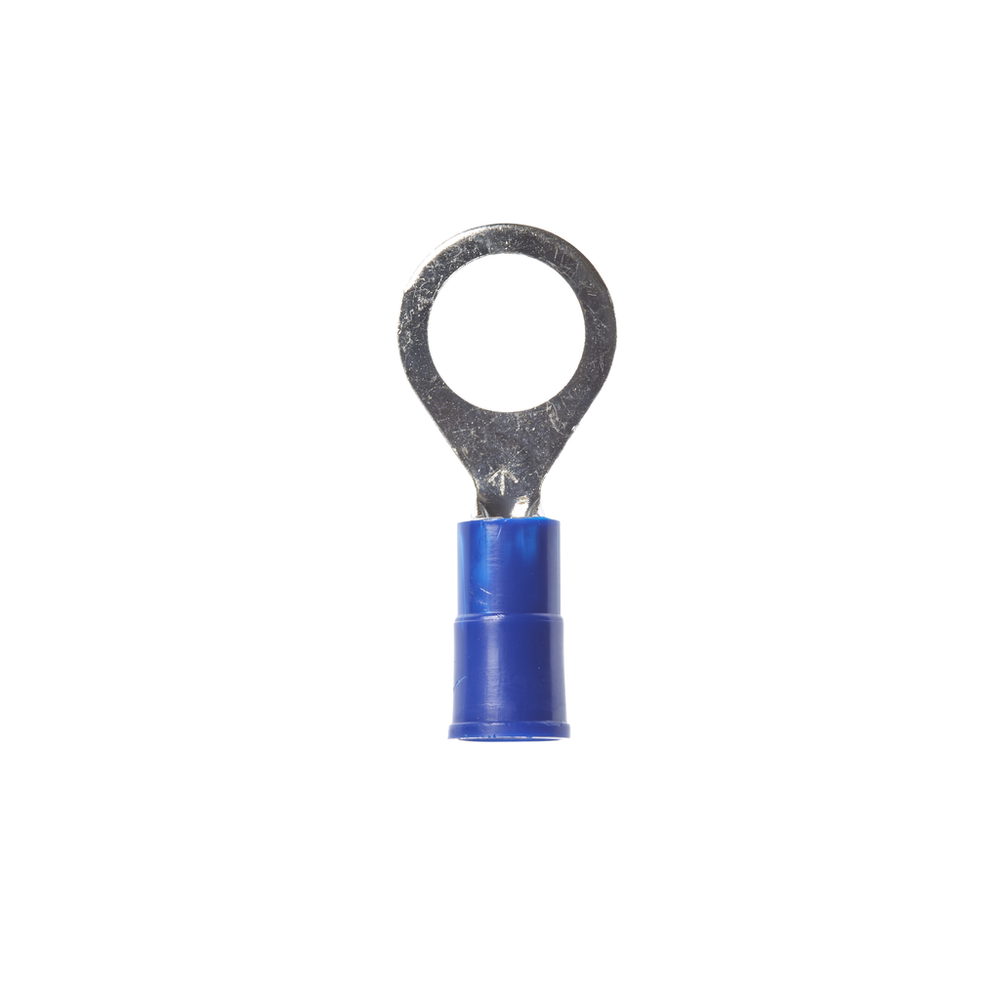

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-516R/SK, Stud Size 5/16, 1000/Case - 7100164013

Sold As: 1000-Pack
SKU: 7100164013
MPN: 7100164013
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014560
3M ID: 80610041065
5 Digit UPC: 1456
$507.96 ($0.51 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)1.31 mm²
Connection Width (Imperial)0.315
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.47
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
Connection TypeCrimp
Insulation MaterialVinyl
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)8.0
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)2.08
Connection Width (Metric) UOMmm
Terminal TypeRing
Overall Length (Imperial)1.08
