3M Products & Supplies

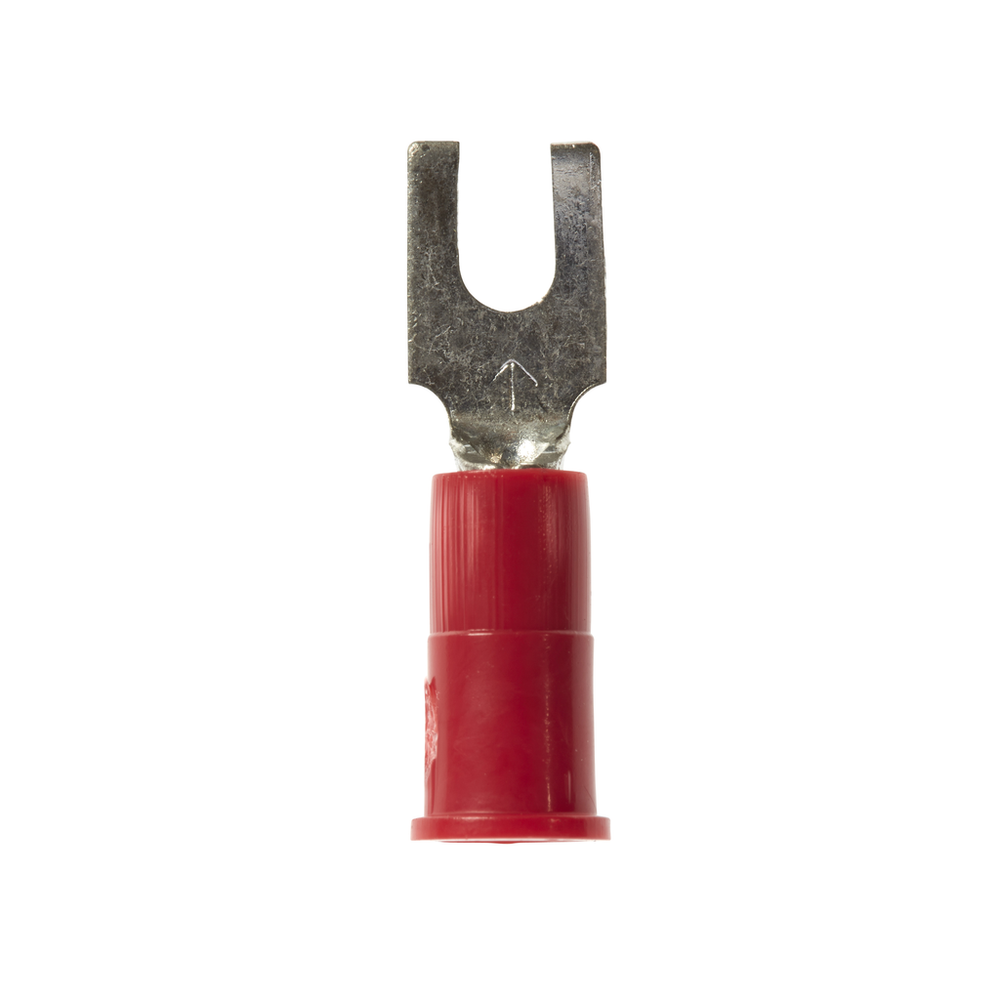

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU18-4FB/SK, Stud Size 4, 1000/Case - 7100164170

Sold As: 1000-Pack
SKU: 7100164170
MPN: 7100164170
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007022534
3M ID: 80610056113
5 Digit UPC: 2253
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.7 Inch
Minimum Conductor Size (Imperial)22 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Stud Diameter (Metric)2.845
Maximum Operating Temperature (Celsius)105.0
Stud Size#4
Overall Length (Imperial)0.85
Fork TypeBlock
Terminal StyleBlock
UL File NumberE23438
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial)0.145
Stud Diameter (Imperial)0.112
Overall Width (Imperial)0.25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Fahrenheit)221.0
Barrel StyleButted
Terminal TypeFork
Barrel Inside Diameter0.070 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric).0823 mm²
Packaging1000 per bulk box
Clearance (C)0.25 Inch
Units per Case1000.0
