3M Products & Supplies

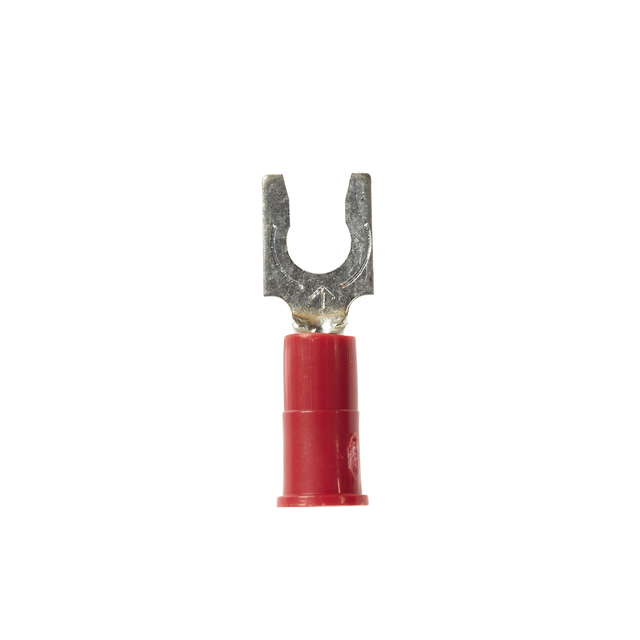

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU18-10FBK, Stud Size 10, 1000/Case - 7100163957

Sold As: 1000-Pack
SKU: 7100163957
MPN: 7100163957
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012214
3M ID: 80610038400
5 Digit UPC: 1221
$340.91 ($0.34 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleBlock
Stud Size#10
Insulation MaterialVinyl
Stud Diameter (Metric)4.826
Maximum Conductor Size (Metric).0823 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Conductor Size (Metric)0.326 mm²
Stud Diameter (Imperial) UOMin
Packaging1000 per bulk box
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)0.85
Fork TypeBlock
Clearance (C)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE23438
Stud Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)22 AWG
Overall Length (Imperial) UOMin
Dimension E0.7 Inch
Stud Diameter (Imperial)0.19
Barrel StyleButted
Barrel Inside Diameter0.070 Inch
Units per Case1000.0
Barrel Length (Imperial)0.25 Inch
Overall Width (Imperial)0.3
Terminal TypeFork
