3M Products & Supplies

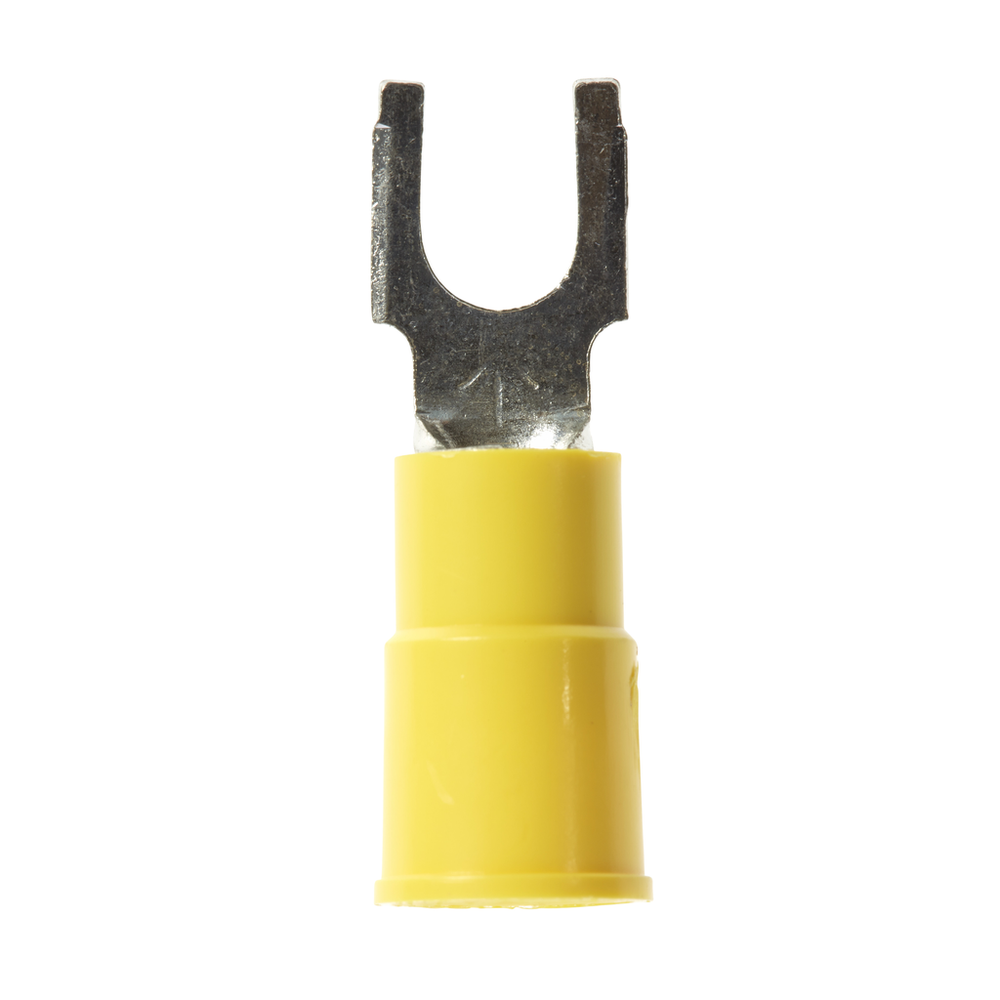

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU10-10FBK, Stud Size 10, 500/Case - 7100164119

Sold As: 500-Pack
SKU: 7100164119
MPN: 7100164119
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020226
3M ID: 80610050116
5 Digit UPC: 2022
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Units per Case500.0
Clearance (C)0.29 Inch
Terminal TypeFork
Maximum Insulation Outer Diameter (Imperial)0.25
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric)4.826
Terminal StyleBlock
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Diameter (Imperial)0.19
Maximum Conductor Size (Metric)5.26 mm²
Stud Size#10
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)1.03
Overall Width (Imperial)0.32
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial) UOMin
UL File NumberE23438
Packaging500 per bulk box
Insulation MaterialVinyl
Barrel StyleButted
Maximum Operating Temperature (Celsius)105.0
Stud Diameter (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Fork TypeBlock
Maximum Conductor Size (Imperial)10 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Dimension E0.84 Inch
