3M Products & Supplies

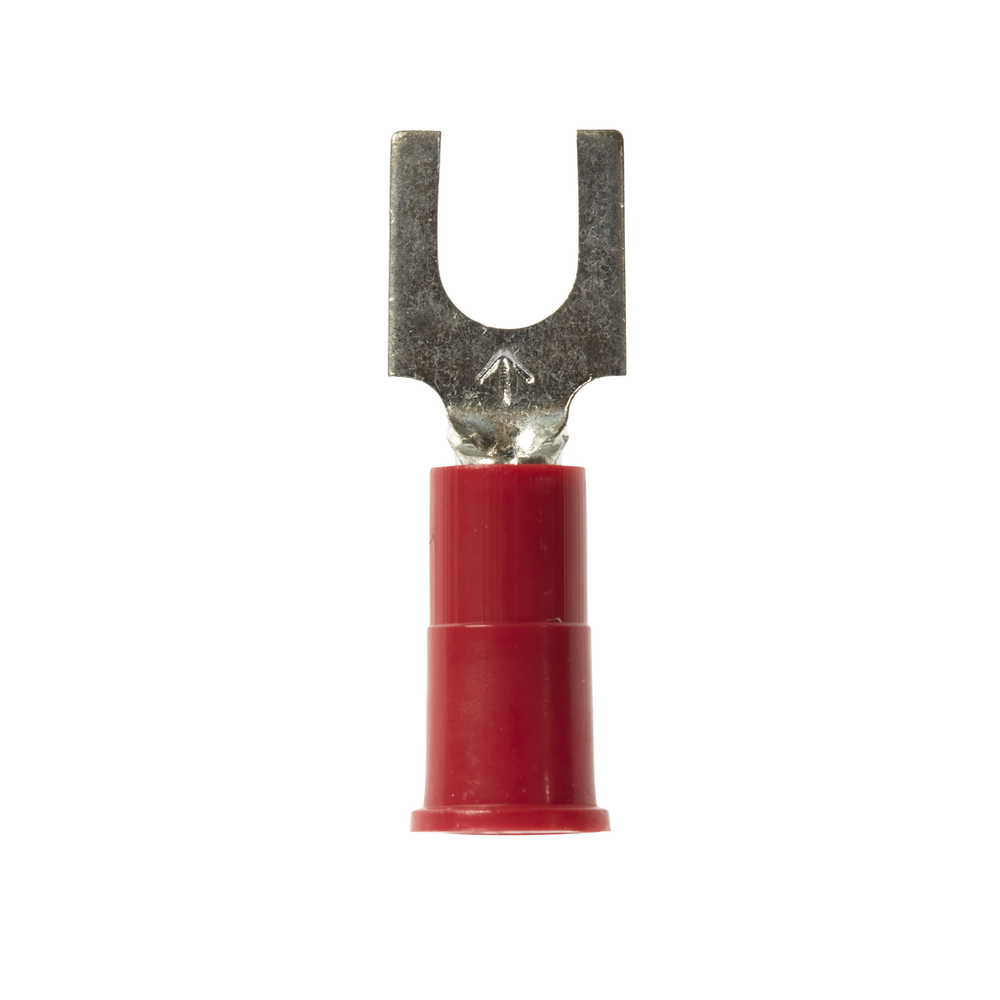

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU18-8FBK, Stud Size 8, suitable for use in a terminal block, 1000/Case - 7100163956

Sold As: 1000-Pack
SKU: 7100163956
MPN: 7100163956
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012207
3M ID: 80610038392
5 Digit UPC: 1220
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Stud Size#8
Insulation MaterialVinyl
Barrel Inside Diameter0.070 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Packaging1000 per bulk box
UL File NumberE23438
Stud Diameter (Metric) UOMmm
Overall Width (Imperial)0.3
Stud Diameter (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Clearance (C)0.25 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Length (Imperial)0.25 Inch
Fork TypeBlock
Stud Diameter (Metric)4.166
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)18 AWG
Dimension E0.7 Inch
Terminal StyleBlock
Overall Length (Imperial)0.85
Terminal TypeFork
Minimum Conductor Size (Metric)0.326 mm²
Stud Diameter (Imperial)0.164
Barrel StyleButted
Units per Case1000.0
Overall Width (Imperial) UOMin
Maximum Conductor Size (Metric).0823 mm²
Maximum Insulation Outer Diameter (Imperial)0.145
