3M Products & Supplies

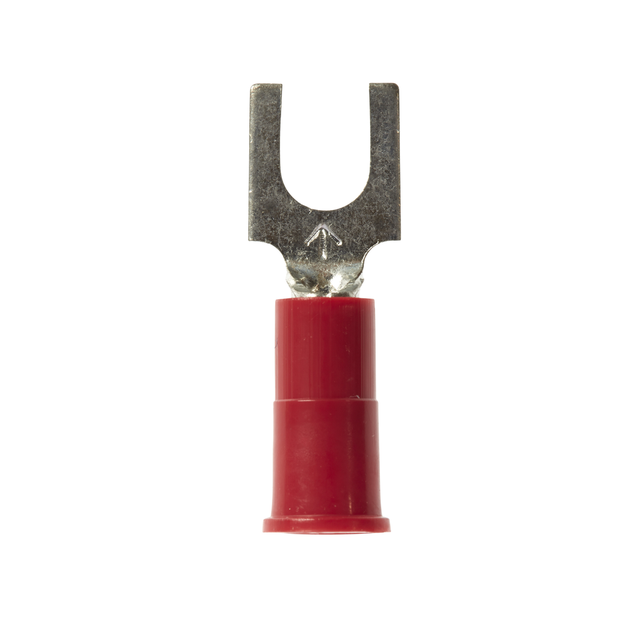

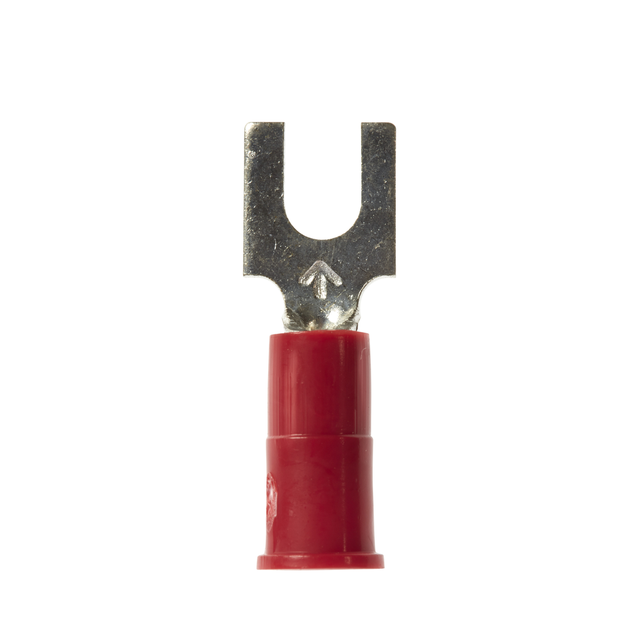

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU18-6FBK, Stud Size 6, suitable for use in a terminal block, 1000/Case - 7100163955

Sold As: 1000-Pack
SKU: 7100163955
MPN: 7100163955
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007012191
3M ID: 80610038376
5 Digit UPC: 1219
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Stud Diameter (Imperial)0.138
Overall Width (Imperial)0.25
Terminal TypeFork
Minimum Conductor Size (Imperial)22 AWG
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Insulation MaterialVinyl
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)221.0
Dimension E0.7 Inch
Overall Length (Imperial)0.85
Maximum Conductor Size (Imperial)18 AWG
Fork TypeBlock
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Packaging1000 per bulk box
Maximum Insulation Outer Diameter (Imperial)0.145
Clearance (C)0.25 Inch
Stud Diameter (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Barrel Inside Diameter0.070 Inch
Terminal StyleBlock
Maximum Operating Temperature (Celsius)105.0
Stud Size#6
Minimum Conductor Size (Metric)0.326 mm²
UL File NumberE23438
Overall Length (Imperial) UOMin
Barrel StyleButted
Stud Diameter (Metric)3.505
Units per Case1000.0
Maximum Conductor Size (Metric).0823 mm²
