3M Products & Supplies

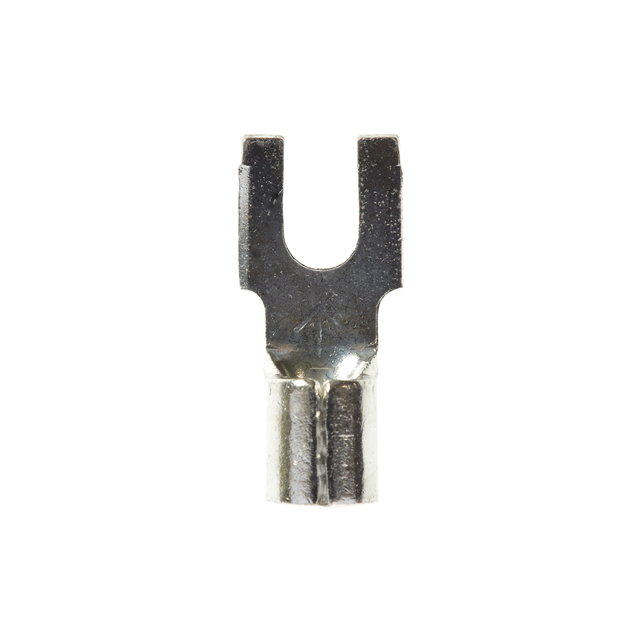

3M™ Scotchlok™ Block Fork, Vinyl Insulated Butted Seam MVU10-6FBK, Stud Size 6, suitable for use in a terminal block, 500/Case - 7100164117

Sold As: 500-Pack
SKU: 7100164117
MPN: 7100164117
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020202
3M ID: 80610050090
5 Digit UPC: 2020
$214.66 ($0.43 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial) UOMin
Dimension E0.84 Inch
Stud Diameter (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Fork TypeBlock
Stud Diameter (Imperial)0.138
Packaging500 per bulk box
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric) UOMmm
Insulation MaterialVinyl
Barrel Inside Diameter0.135 Inch
Overall Width (Imperial)0.32
Minimum Conductor Size (Metric)3.31 mm²
UL File NumberE23438
Maximum Conductor Size (Metric)5.26 mm²
Units per Case500.0
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleBlock
Clearance (C)0.29 Inch
Maximum Insulation Outer Diameter (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)1.03
Stud Size#6
Maximum Operating Temperature (Fahrenheit)221.0
Terminal TypeFork
Stud Diameter (Metric)3.505
Maximum Insulation Outer Diameter (Imperial)0.25
Barrel StyleButted
Overall Length (Imperial) UOMin
