3M Products & Supplies

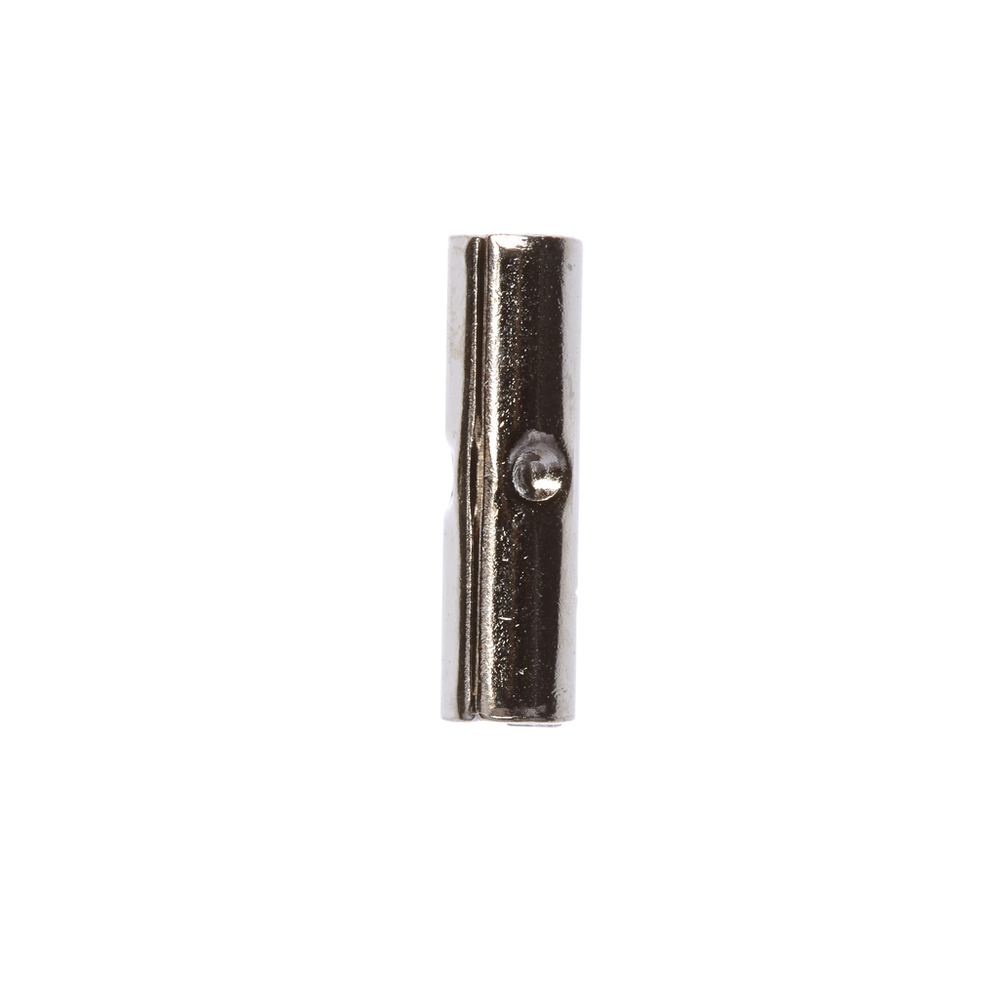

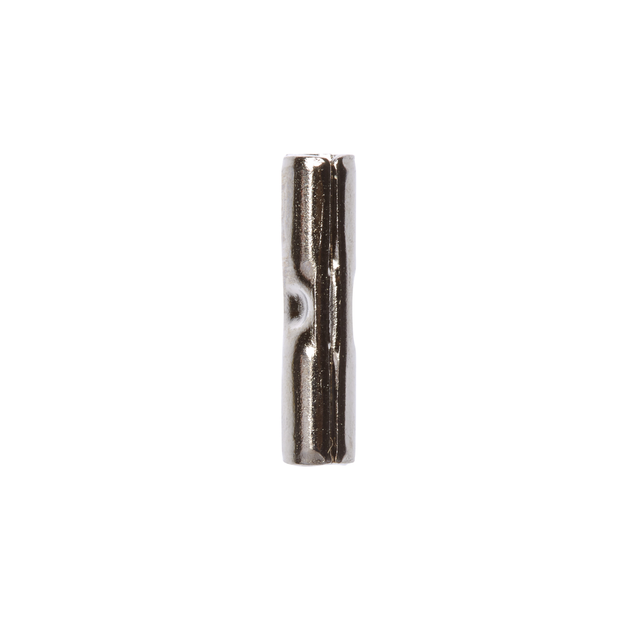

3M™ Scotchlok™ Butt Connector, High Temperature Butted Seam MU14BCHTK, 16-14 AWG, 1000/Case - 7100164043

Sold As: 1000-Pack
SKU: 7100164043
MPN: 7100164043
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017615
3M ID: 80610046619
5 Digit UPC: 1761
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.

Features

  • Made of nickel-plated, annealed steel
  • Built-in wire stop for correct positioning
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • RoHS 2011/65/EU Compliant
  • Maximum Temperature Range of 900 degrees F (482 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)2.5 mm²
Body MaterialStainless Steel
Minimum Conductor Size (Metric)1.5 mm²
Insulation MaterialNon-insulated
Connector TypeButt
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial)0.56
Connection Width (Metric)0.0
Connection Width (Imperial)0.0
Maximum Insulation Outer Diameter (Metric)0.0
Terminal TypeButt Connectors
