3M Products & Supplies

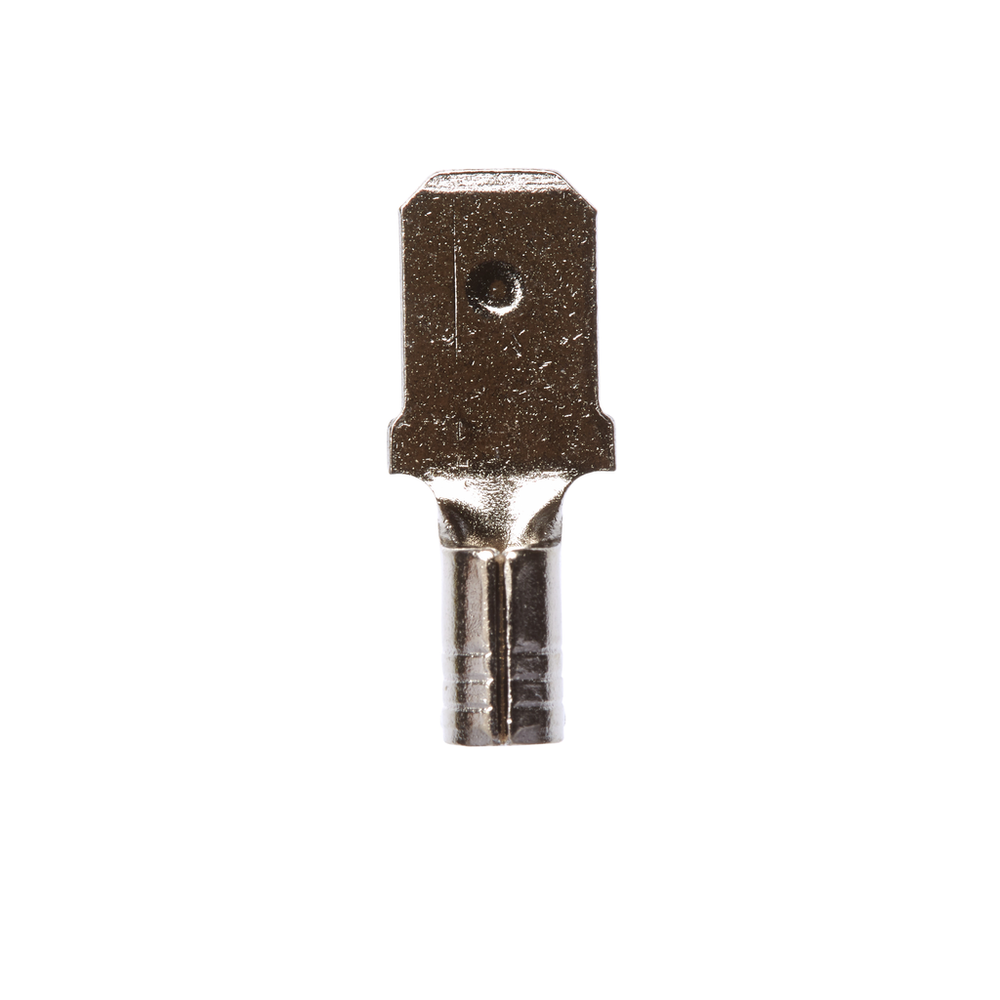

3M™ Scotchlok™ Male Disconnect, High Temperature Butted Seam MU14-250DMHTK, 16-14 AWG, 1000/Case - 7100164046

Sold As: 1000-Pack
SKU: 7100164046
MPN: 7100164046
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017653
3M ID: 80610046650
5 Digit UPC: 1765
$164.09 ($0.16 / Count)
Hurry up! Current stock:

Product Description

Features

  • This high-temperature male disconnect terminal offers excellent holding force
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial)0.73
Maximum Conductor Size (Metric)2.5 mm²
Pad Width0.25
Male Tab Width (W')0.25 Inch
Disconnect TypeMale
Barrel Inside Diameter0.09 Inch
Solution forWireless Network: Infrastructure Accessories
InsulatedNo
Terminal StyleHigh Temp
Insulation MaterialNon-insulated
Units per Case1000.0
Connection Width (Metric) UOMmm
Connection Width (Metric)6.35
Barrel StyleButted
Connection Width (Imperial)0.25
Fork TypeStandard Fork
Packaging1000 per bulk box
Minimum Conductor Size (Metric)1.5 mm²
Terminal TypeDisconnect
Maximum Conductor Size (Imperial)14 AWG
Fastener OrientationMale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
