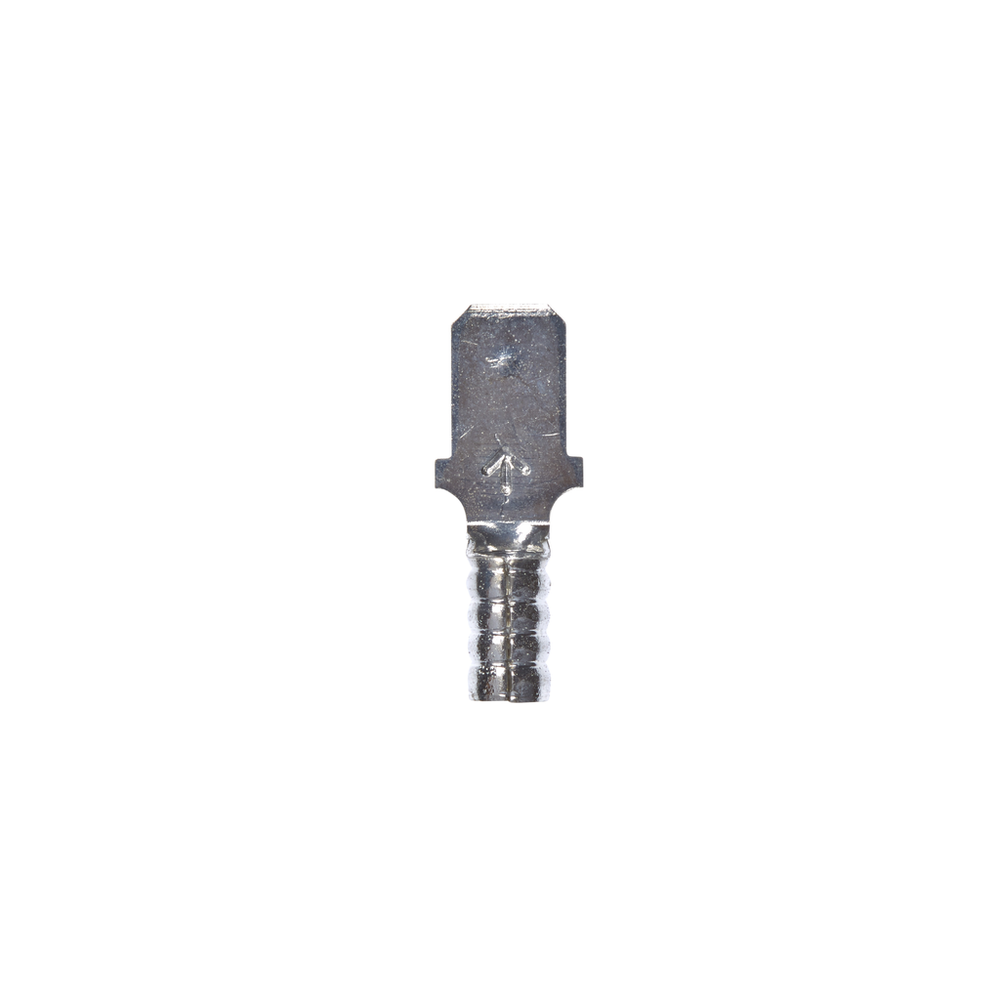

3M™ Scotchlok™ Male Disconnect, Non-Insulated Butted Seam MU14-187DMK, 16-14 AWG, 1000/Case - 7100164051

Sold As: 1000-Pack
SKU: 7100164051
MPN: 7100164051
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017837
3M ID: 80610046908
5 Digit UPC: 1783
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Male Disconnect terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Accommodates wire sizes 16 to 14 AWG
  • This male disconnect terminal offers excellent holding force
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Fastener OrientationMale
Maximum Conductor Size (Metric)2.5 mm²
Minimum Conductor Size (Metric)1.5 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleButted
UL File NumberE70512
Units per Case1000.0
Insulation MaterialNon-insulated
Connection Width (Imperial)0.187
Solution forWireless Network: Infrastructure Accessories
Packaging1000 per bulk box
Barrel Length (Imperial)0.24 Inch
Connection Width (Metric) UOMmm
Terminal StyleStandard
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Disconnect TypeMale
Connection Width (Imperial) UOMin
Male Tab Width (W')0.187 Inch
Pad Width0.187
Terminal TypeDisconnect
Connection Width (Metric)4.75
Bullet Diameter0.180
Barrel Inside Diameter0.08 Inch
Overall Length (Imperial)0.64
Conductor Sizes (Imperial)16 - 14 AWG
