3M Products & Supplies

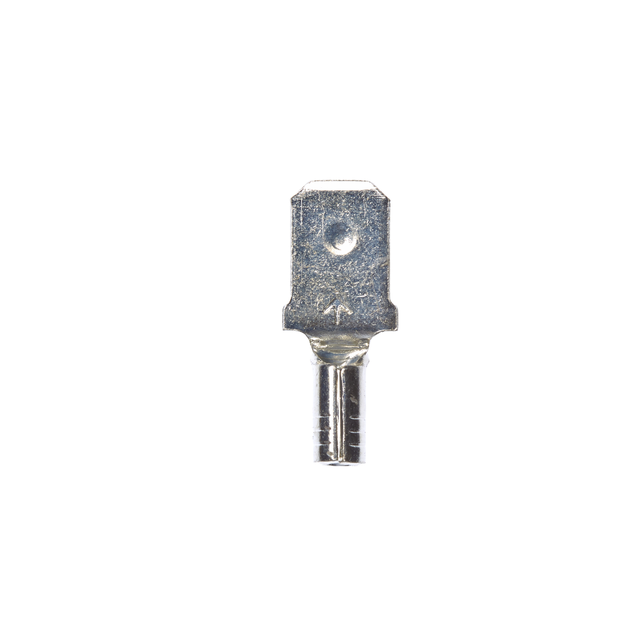

3M™ Scotchlok™ Male Disconnect, Non-Insulated Butted Seam MU18-187DMK, 22-18 AWG, 1000/Case - 7100164184

Sold As: 1000-Pack
SKU: 7100164184
MPN: 7100164184
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023722
3M ID: 80610064737
5 Digit UPC: 2372
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Male Disconnect terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Allows for quick and easy disconnect of wires
  • Accommodates wire sizes 16 to 14 AWG
  • This male disconnect terminal offers excellent holding force
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Imperial)0.187
Barrel Length (Imperial)0.24 Inch
Terminal TypeDisconnect
Packaging1000 per bulk box
Minimum Conductor Size (Metric).34 mm²
Disconnect TypeMale
Barrel StyleButted
Barrel Inside Diameter0.08 Inch
Solution forWireless Network: Infrastructure Accessories
Tab Width0.187
Minimum Conductor Size (Imperial)22 AWG
Pad Width0.187
Terminal StyleStandard
Maximum Conductor Size (Metric)1 mm²
Units per Case1000.0
Insulation MaterialNon-insulated
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.064
Connection Width (Metric)4.75
Fastener OrientationMale
Male Tab Width (W')0.187 Inch
