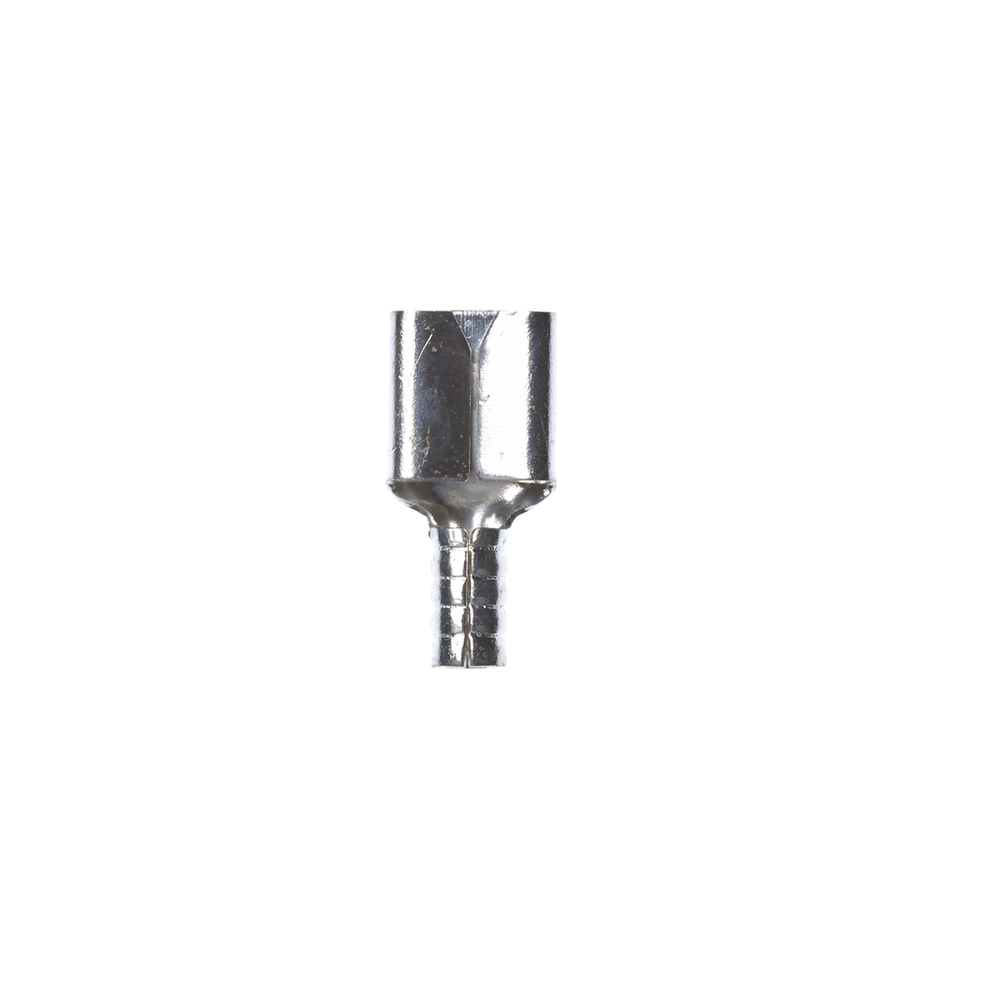

3M™ Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU18-250DFK, 22-18 AWG, 1000/Case - 7100163965

Sold As: 1000-Pack
SKU: 7100163965
MPN: 7100163965
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013006
3M ID: 80610039200
5 Digit UPC: 1300
$147.52 ($0.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Metric).34 mm²
Barrel StyleButted
Pad Width0.25
Overall Length (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Tab Width0.250
Terminal TypeDisconnect
Connection Width (Metric) UOMmm
Insulation MaterialNon-insulated
Packaging1000 per bulk box
Maximum Conductor Size (Imperial)18 AWG
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial)0.66
Barrel Inside Diameter0.08 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric)6.35
Fastener OrientationFemale
Mates with Female Width0.25 Inch
Disconnect TypeFemale
Connection Width (Imperial)0.25
Mates with Male Tab Width (W')0.25 Inch
Terminal StyleStandard
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE70512
Connection Width (Imperial) UOMin
Units per Case1000.0
