3M Products & Supplies

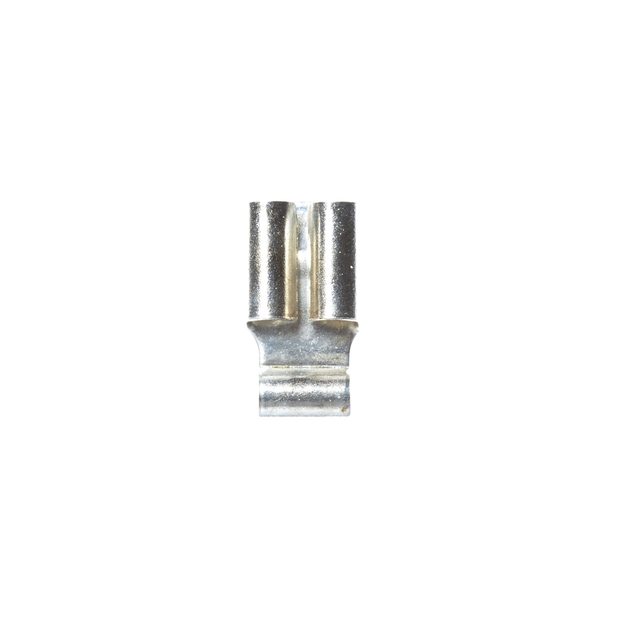

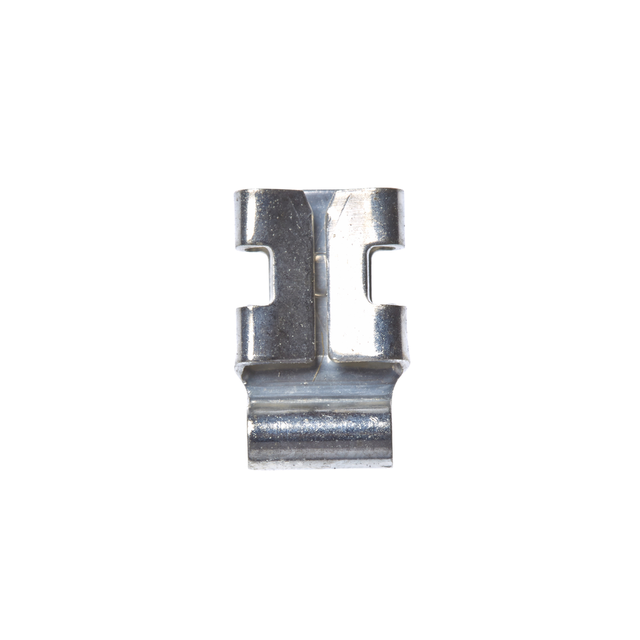

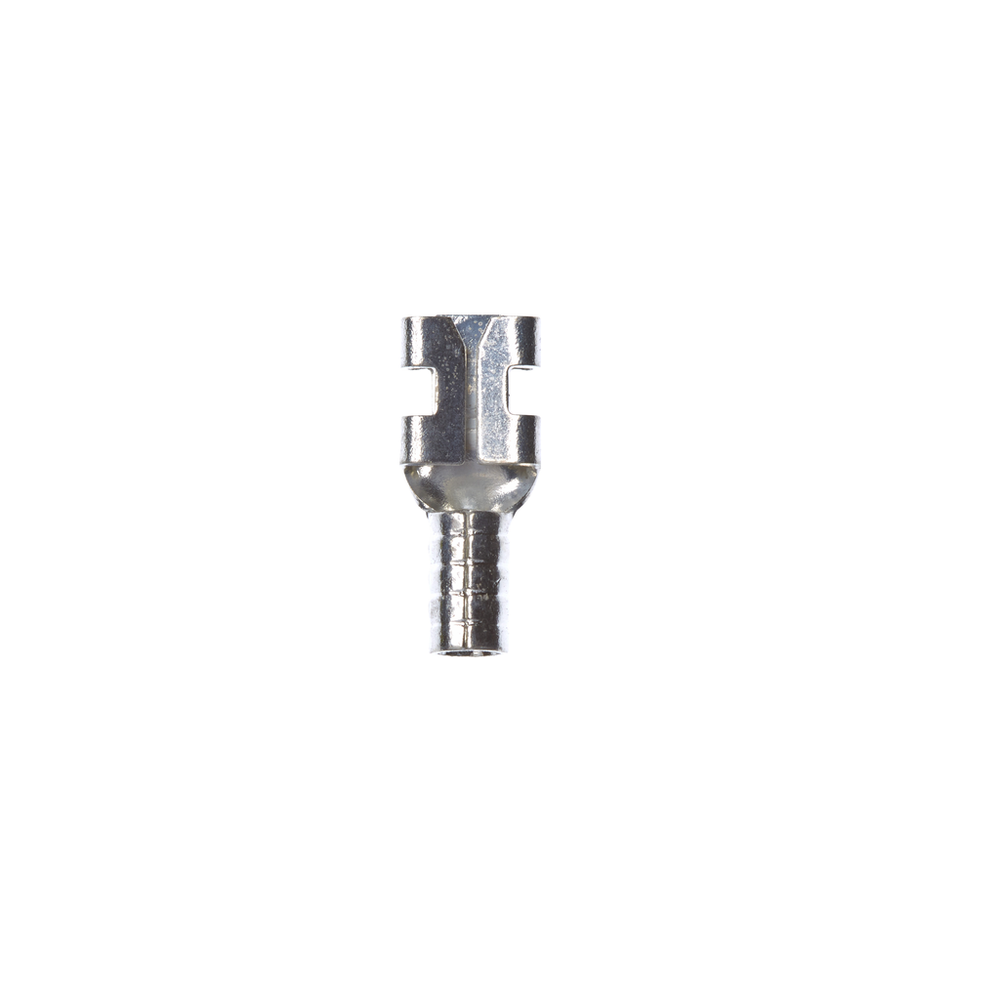

3M™ Scotchlok™ Female Disconnect, Non-Insulated Butted Seam MU18-187DFK, 22-18 AWG, 1000/Case - 7100164181

Sold As: 1000-Pack
SKU: 7100164181
MPN: 7100164181
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023661
3M ID: 80610064679
5 Digit UPC: 2366
$193.26 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Solution forWireless Network: Infrastructure Accessories
Units per Case1000.0
Pad Width0.187
Barrel Inside Diameter0.085 Inch
Minimum Conductor Size (Metric).34 mm²
Maximum Conductor Size (Metric)1 mm²
Minimum Conductor Size (Imperial)22 AWG
Barrel StyleButted
Insulation MaterialNon-insulated
Mates with Female Width0.187 Inch
Tab Width0.187
UL File NumberE70512
Connection Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.187
Maximum Conductor Size (Imperial)18 AWG
Fastener OrientationFemale
Connection Width (Metric) UOMmm
Terminal StyleStandard
Mates with Male Tab Width (W')0.187 Inch
Overall Length (Imperial) UOMin
Packaging1000 per bulk box
Terminal TypeDisconnect
Disconnect TypeFemale
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connection Width (Metric)4.75
Overall Length (Imperial)0.58
