3M Products & Supplies

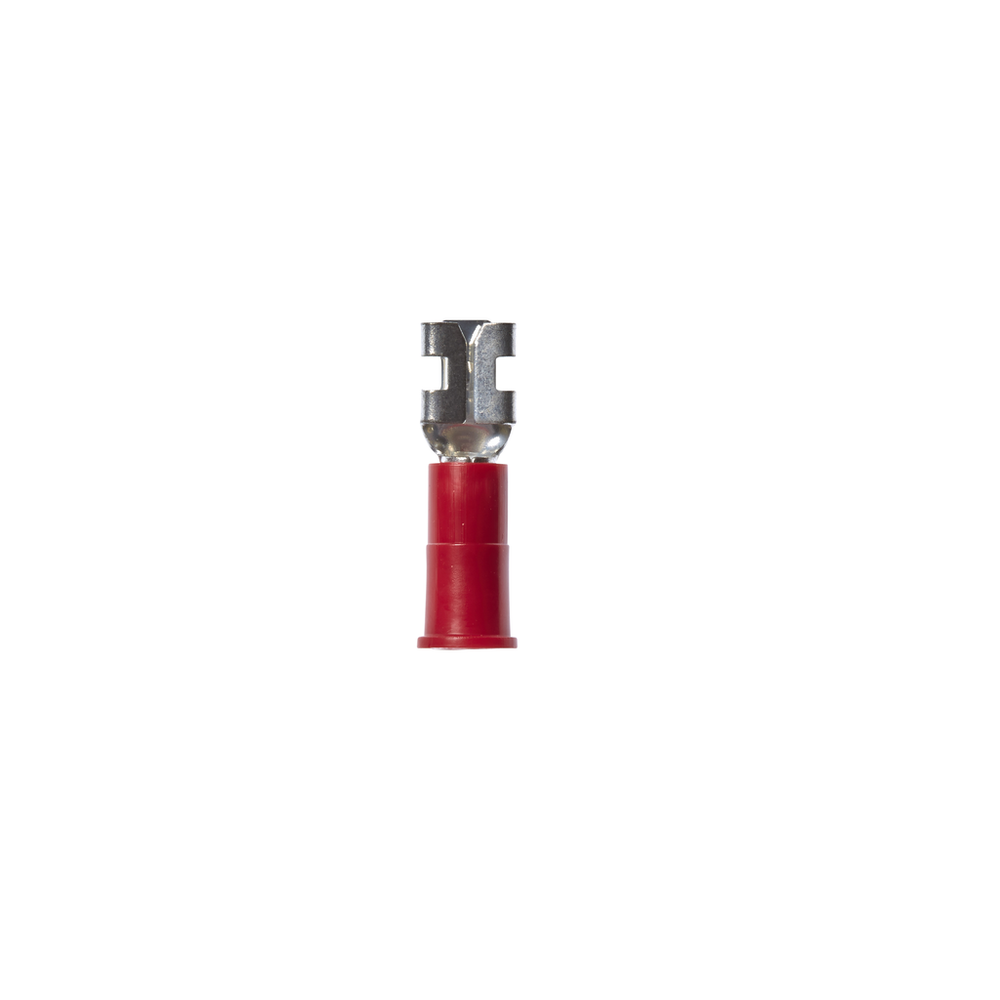

3M™ Scotchlok™ Female Disconnect, Vinyl Insulated Butted Seam MVU18-187DFK, 22-18 AWG, 1000/Case - 7100164182

Sold As: 1000-Pack
SKU: 7100164182
MPN: 7100164182
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023685
3M ID: 80610064695
5 Digit UPC: 2368
$361.09 ($0.36 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Vinyl Insulated Butted Seam Female Disconnect has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.78
Fastener OrientationFemale
Maximum Conductor Size (Metric)1 mm²
Solution forWireless Network: Infrastructure Accessories
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Imperial)0.187
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel StyleButted
Units per Case1000.0
Insulation MaterialVinyl
Terminal StyleStandard
Tab Width0.187
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Terminal TypeDisconnect
Pad Width0.187
Connection Width (Metric)4.75
Barrel Inside Diameter0.085 Inch
Connection Width (Imperial) UOMin
UL File NumberE70512
Packaging1000 per bulk box
Minimum Conductor Size (Metric).34 mm²
Maximum Insulation Outer Diameter (Imperial) UOMin
Disconnect TypeFemale
Mates with Female Width0.187 Inch
Maximum Conductor Size (Imperial)18 AWG
Mates with Male Tab Width (W')0.187 Inch
Maximum Insulation Outer Diameter (Imperial)0.145
