3M Products & Supplies

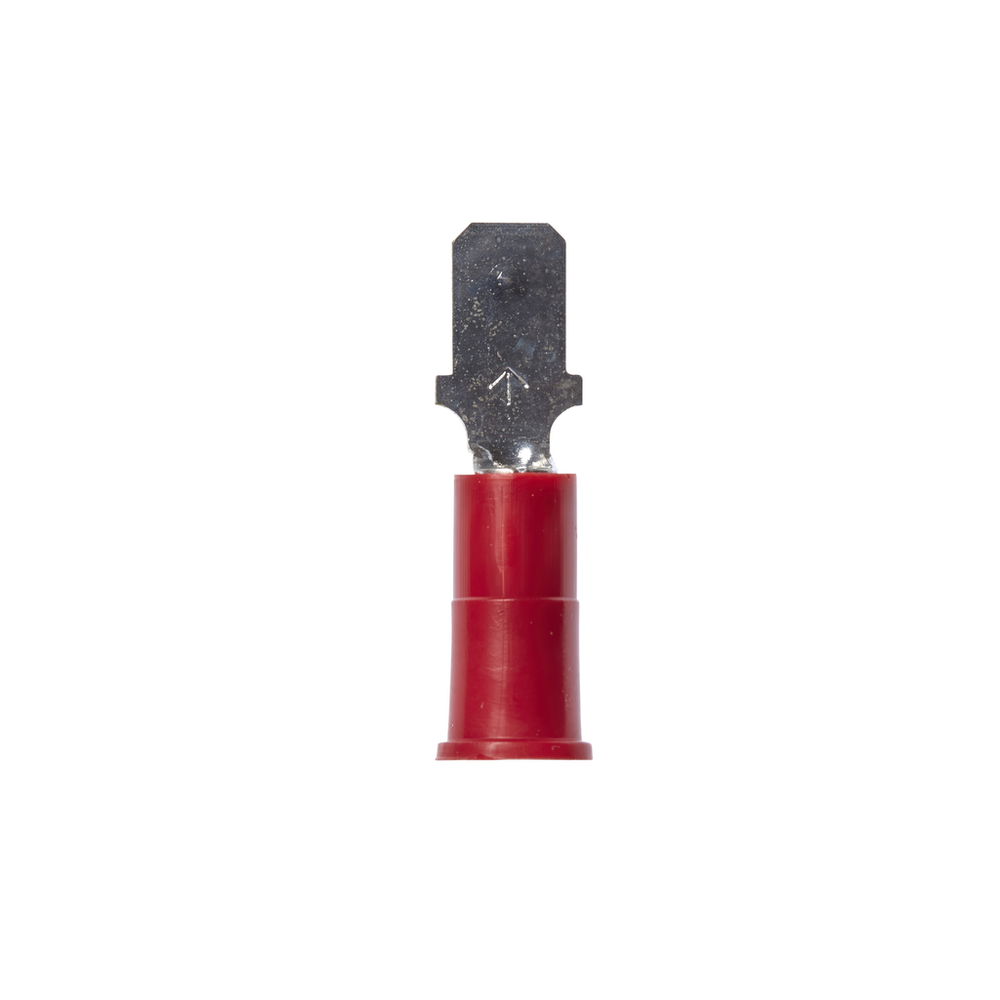

3M™ Scotchlok™ Male Disconnect, Vinyl Insulated Butted Seam MVU18-187DMK, 22-18 AWG, 1000/Case - 7100057497

Sold As: 1000-Pack
SKU: 7100057497
MPN: 7100057497
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023753
3M ID: 80610064760
5 Digit UPC: 2375
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • This male disconnect terminal offers excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.08 Inch
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.85
Minimum Conductor Size (Metric).34 mm²
Connection Width (Metric)4.75
Solution forWireless Network: Infrastructure Accessories
Barrel Length (Imperial)0.24 Inch
Terminal TypeDisconnect
Conductor Sizes (Imperial)22 - 18 AWG
UL File NumberE70512
Maximum Insulation Outer Diameter (Imperial) UOMin
Units per Case1000.0
Connection Width (Imperial)0.187
Disconnect TypeMale
Maximum Insulation Outer Diameter (Imperial)0.145
Pad Width0.187
Terminal StyleStandard
Overall Length (Imperial) UOMin
Male Tab Width (W')0.187 Inch
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Imperial)18 AWG
Fastener OrientationMale
Maximum Conductor Size (Metric)1 mm²
Tab Width0.187
Insulation MaterialVinyl
Barrel StyleButted
Packaging1000 per bulk box
