3M Products & Supplies

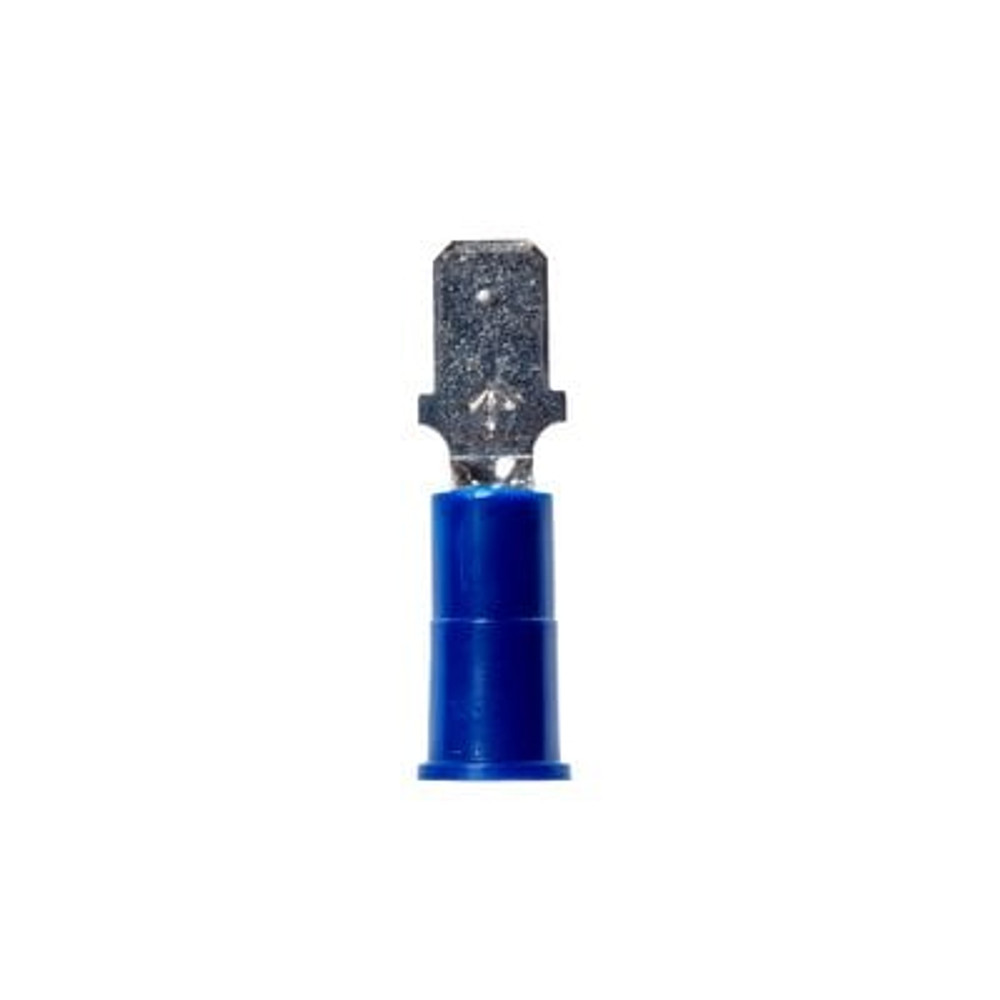

3M™ Scotchlok™ Male Disconnect, Vinyl Insulated Butted Seam MVU14-187DMK, 16-14 AWG, 1000/Case - 7100164054

Sold As: 1000-Pack
SKU: 7100164054
MPN: 7100164054
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007017899
3M ID: 80610046965
5 Digit UPC: 1789
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Length (Imperial) UOMin
Minimum Conductor Size (Metric)1.5 mm²
Overall Length (Imperial)0.85
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.187
Solution forWireless Network: Infrastructure Accessories
Barrel Inside Diameter0.08 Inch
Connection Width (Imperial) UOMin
Terminal TypeDisconnect
Packaging1000 per bulk box
Barrel Length (Imperial)0.24 Inch
UL File NumberE70512
Disconnect TypeMale
Minimum Conductor Size (Imperial)16 AWG
Male Tab Width (W')0.187 Inch
Tab Width0.250
Fastener OrientationMale
Pad Width0.187
Barrel StyleButted
Terminal StyleStandard
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric)4.75
Maximum Insulation Outer Diameter (Imperial)0.145
Connection Width (Metric) UOMmm
Units per Case1000.0
